Description

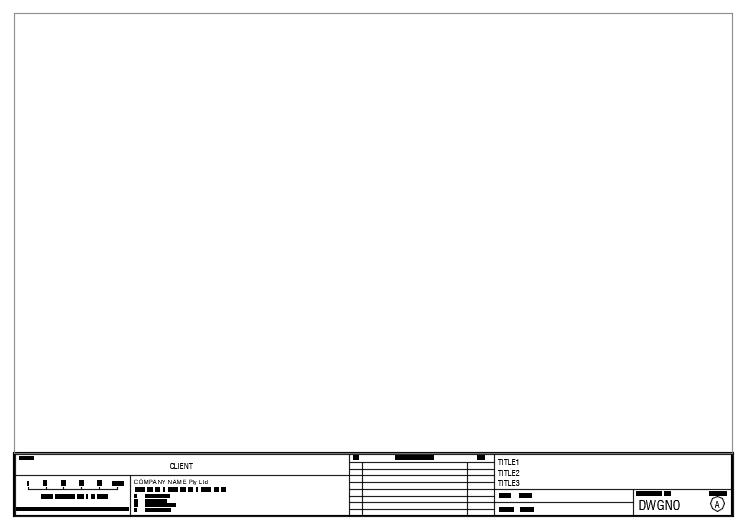

Metric titleblocks in both A1 and A3 sheet sizes, supplied as two DWG files. Each is a borderless title strip that runs along the bottom of the sheet – leaving the full page clear for drawing – with a print-reduction scale bar, company name and contact block, a multi-row revisions and amendment table, a three-line drawing title, scale, drawn-by and drawing-number fields.
A1 is the standard full-size construction sheet and A3 the common half-size check print, so the pair covers issue and review sets from a single download. Fill in your company details once, drop in a logo, and save them into your office template as a house standard.
More formats – a landscape A1 titleblock, a vertical A3 titleblock, a multi-consultant A1 and a standalone borderless A3 – are in the titleblocks category. A free AutoCAD DWG download.
