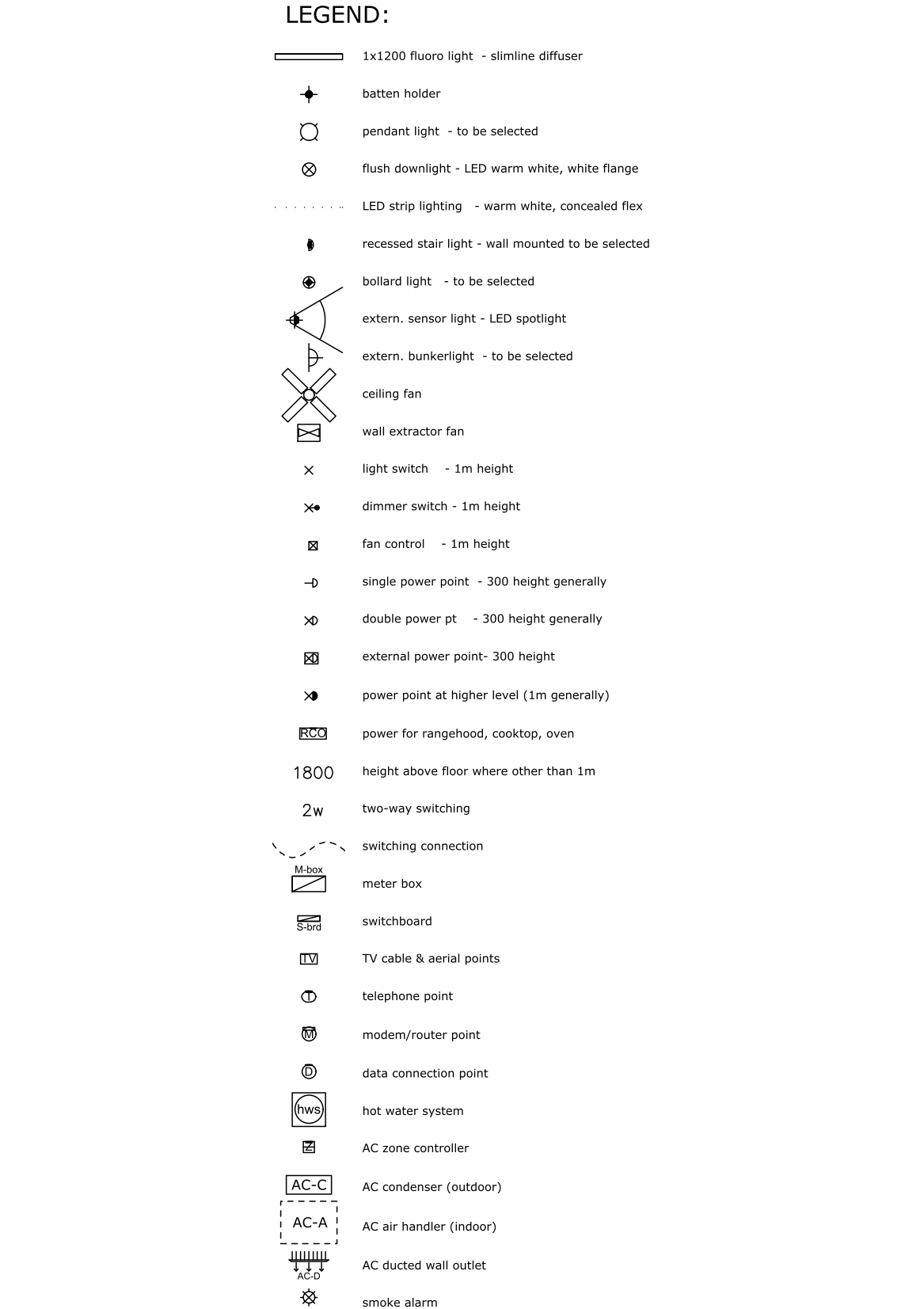

Domestic Architectural Plan Symbol Legend

A DWG file of common symbols used on architectural floor plans of houses. A free CAD block download.

What symbols are included in this AutoCAD drawing?

• 1x1200 fluoro light - slimline diffuser
• batten holder pendant light - to be selected
• flush downlight - LED warm white, white flange
• LED strip lighting - warm white, concealed flex
• recessed stair light - wall mounted to be selected
• bollard light - to be selected
• external sensor light - LED spotlight
• external bunkerlight - to be selected
• ceiling fan
• wall extractor fan
• light switch - 1m height
• dimmer switch - 1m height
• fan control - 1m height
• single power point - 300 height generally
• double power pt - 300 height generally
• external power point- 300 height
• power point at higher level (1m generally)
• power for rangehood, cooktop, oven
• height above floor where other than 1m
• two-way switching
• switching connection
• meter box
• switchboard
• TV cable & aerial points
• telephone point
• modem/router point
• data connection point
• hot water system
• AC zone controller
• AC condenser (outdoor)
• AC air handler (indoor)
• AC ducted wall outlet
• smoke alarm
