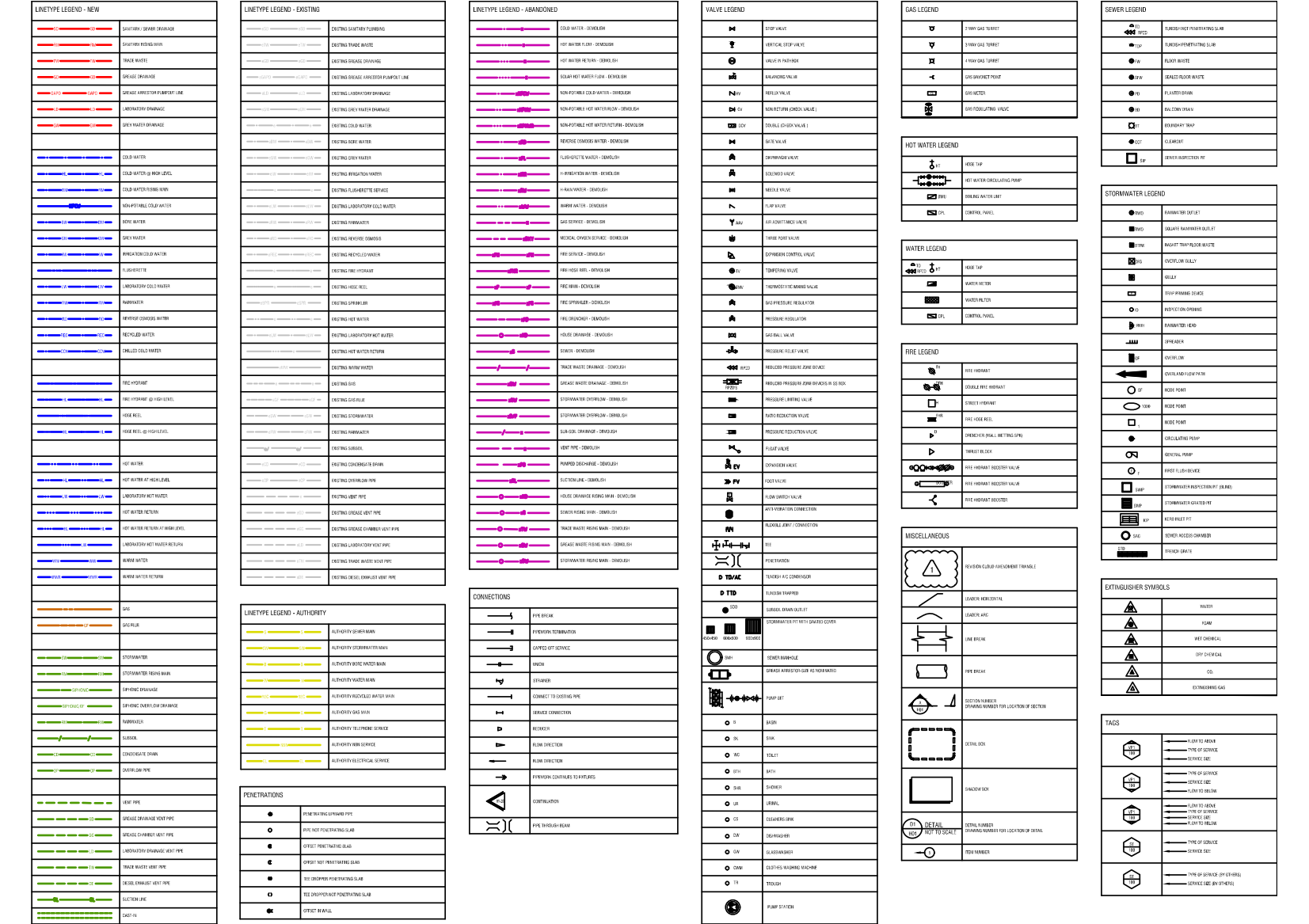

A free AutoCAD block download for hydraulic, civil and plumbing drafting projects.
What types of linework are included?
- SANITARY / SEWER DRAINAGE
- SANITARY RISING MAIN
- TRADE WASTE
- GREASE DRAINAGE
- GREASE ARRESTOR PUMPOUT LINE
- LABORATORY DRAINAGE
- GREY WATER DRAINAGE
- COLD WATER
- COLD WATER AT HIGH LEVEL
- COLD WATER RISING MAIN
- NON-POTABLE COLD WATER
- BORE WATER
- GREY WATER
- IRRIGATION COLD WATER
- FLUSHERETTE
- LABORATORY COLD WATER
- RAINWATER
- REVERSE OSMOSIS WATER
- RECYCLED WATER
- CHILLED COLD WATER
- FIRE HYDRANT
- FIRE HYDRANT AT HIGH LEVEL
- HOSE REEL HOSE REEL AT HIGH LEVEL
- HOT WATER
- HOT WATER AT HIGH LEVEL
- LABORATORY HOT WATER
- HOT WATER RETURN
- HOT WATER RETURN AT HIGH LEVEL
- LABORATORY HOT WATER RETURN
- WARM WATER
- WARM WATER RETURN
- GAS
- GAS FLUE
- STORMWATER
- STORMWATER RISING MAIN
- SIPHONIC DRAINAGE
- SIPHONIC OVERFLOW DRAINAGE
- RAINWATER
- SUBSOIL CONDENSATE DRAIN
- OVERFLOW PIPE
- VENT PIPE
- GREASE DRAINAGE VENT PIPE
- GREASE CHAMBER VENT PIPE
- LABORATORY DRAINAGE VENT PIPE
- TRADE WASTE VENT PIPE
- DIESEL EXHAUST VENT PIPE
- SUCTION LINE
- CAST-IN
What symbols are included?
- 2 WAY GAS TURRET
- TUNDISH NOT PENETRATING
- SLAB STOP VALVE 3 WAY
- GAS TURRET
- TUNDISH PENETRATING SLAB
- VERTICAL STOP VALVE 4 WAY
- GAS TURRET FLOOR WASTE VALVE IN PATHBOX
- GAS BAYONET
- POINT SEALED FLOOR WASTE
- BALANCING VALVE
- PLANTER DRAIN
- REFLUX VALVE
- GAS METER
- GAS REGULATING VALVE
- BALCONY DRAIN
- NON RETURN (CHECK VALVE )
- BOUNDARY TRAP
- DOUBLE (CHECK VALVE )
- CLEAROUT GATE VALVE
- SEWER INSPECTION PIT
- DIAPHRAGM VALVE
- HOSE TAP SOLENOID VALVE
- HOT WATER CIRCULATING PUMP
- NEEDLE VALVE
- BOILING WATER UNIT
- FLAP VALVE CONTROL PANEL
- RAINWATER OUTLET
- AIR ADMITTANCE VALVE
- SQUARE RAINWATER OUTLET
- THREE PORT VALVE
- BASKET TRAP FLOOR WASTE
- EXPANSION CONTROL
- VALVE OVERFLOW GULLY
- HOSE TAP
- TEMPERING VALVE
- GULLY WATER METER
- THERMOSTATIC MIXING VALVE
- TRAP PRIMING DEVICE
- WATER FILTER
- GAS PRESSURE REGULATOR
- INSPECTION OPENING
- CONTROL PANEL PRESSURE REGULATOR
- RAINWATER HEAD
- GAS BALL VALVE
- SPREADER PRESSURE RELIEF VALVE
- OVERFLOW REDUCED PRESSURE ZONE DEVICE
- FIRE HYDRANT
- OVERLAND FLOW PATH
- REDUCED PRESSURE ZONE DEVICES IN SS BOX
- DOUBLE FIRE HYDRANT
- NODE POINT PRESSURE LIMITING VALVE
- STREET HYDRANT NODE POINT
- RATIO REDUCTION VALVE
- FIRE HOSE REEL
- NODE POINT PRESSURE REDUCTION VALVE
- DRENCHER (WALL WETTING SPK)
- CIRCULATING PUMP FLOAT VALVE
- THRUST BLOCK
- GENERAL PUMP EXPANSION VALVE
- FIRE HYDRANT BOOSTER VALVE
- FIRST FLUSH DEVICE
- FOOT VALVE FIRE HYDRANT BOOSTER
- VALVE STORMWATER INSPECTION PIT (BLIND)
- FLOW SWITCH VALVE
- FIRE HYDRANT BOOSTER
- STORMWATER GRATED PIT
- ANTI-VIBRATION CONNECTION
- KERB INLET PIT
- FLEXIBLE JOINT / CONNECTION
- SEWER ACCESS CHAMBER
- TEE TRENCH
- GRATE
- PENETRATION
- TUNDISH
- A/C CONDENSOR
- TUNDISH TRAPPED
- SUBSOIL DRAIN OUTLET
- STORMWATER PIT WITH GRATED COVER
- SEWER MANHOLE
- GREASE ARRESTOR-SIZE AS NOMINATED
- PUMP SET
- BASIN SINK
- TOILET
- BATH
- SHOWER
- URINAL
- CLEANERS SINK
- DISHWASHER
- GLASSWASHER
- CLOTHES WASHING MACHINE
- TROUGH PUMP STATION
