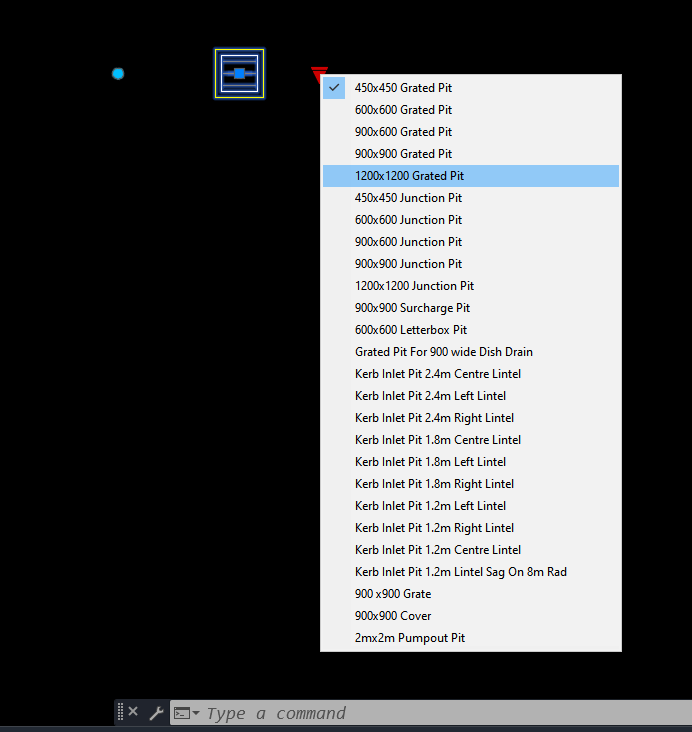

A stormwater pit dynamic block.
What pits are included in this DWG file:
- 450 x 450 Grated Pit
- 600 x 600 Grated Pit
- 900 x 600 Grated Pit
- 900 x 900 Grated Pit
- 1200 x 1200 Grated Pit
- 450 x 450 Junction Pit
- 600 x 600 Junction Pit
- 900 x 600 Junction Pit
- 900 x 900 Junction Pit
- 1200 x 1200 Junction Pit
- 900 x 900 Surcharge Pit
- 600 x 600 Letterbox Pit
- Grated Pit for 900 wide dish drain
- Kerb inlet pit 2.4m center lintel
- Kerb inlet pit 2.4m left lintel
- Kerb inlet pit 2.4m right lintel
- Kerb inlet pit 1.8m center lintel
- Kerb inlet pit 1.8m left lintel
- Kerb inlet pit 1.8m right lintel
- Kerb inlet pit 1.2m center lintel
- Kerb inlet pit 1.2m left lintel
- Kerb inlet pit 1.2m right lintel
- Kerb inlet pit 1.2m lintel sag on 8m radius
- 900 x 900 Grate
- 900 x 900 Cover
- 2m x 2m Pumpout Pit
File | Action |
---|---|
Storm Water Pit.dwg | Download |
