- Version
- 1476 Download
- 67.97 KB File Size
- 1 File Count
- February 27, 2020 Create Date
- February 27, 2020 Last Updated

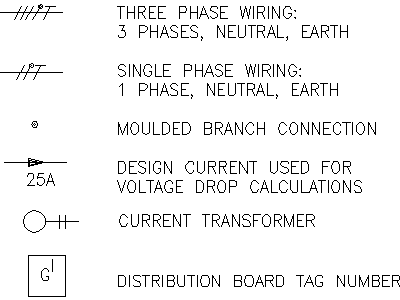

A collection of 2D electrical symbols. A free AutoCAD block DWG file download.
Includes:
- Three phase wiring: 3 phases, neutral, earth
- Single phase wiring: 1 phase, neutral, earth
- Moulded branch connection
- Design current used for voltage drop calculations
- Current transformer
- Distribution board tag number
File | Action |
---|---|
electrical_symbols_11.dwg | Download |
