Free AutoCAD Blocks

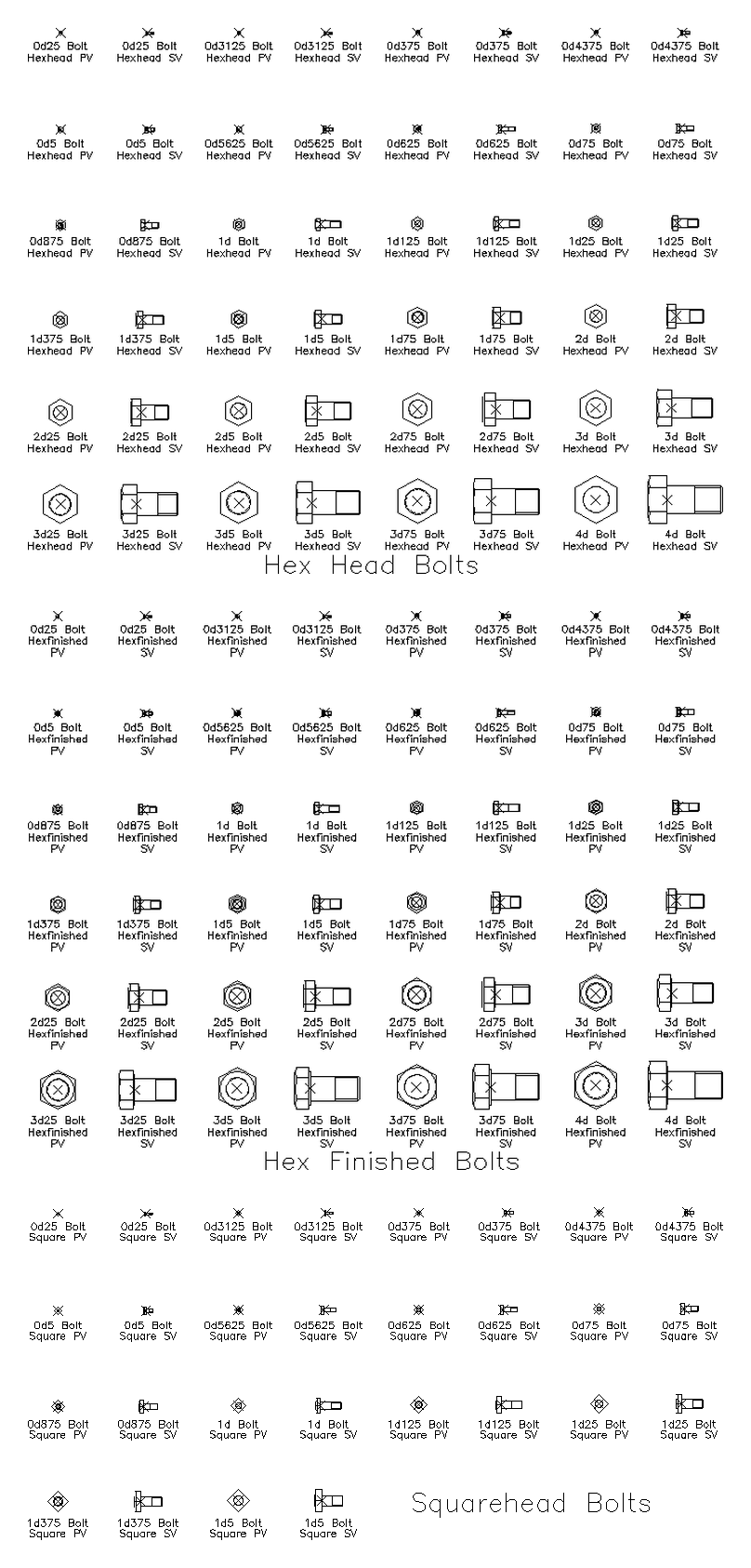

A set of imperial bolt blocks drawn in plan and side view — hex head, finished hex head, and square head bolts — covering sizes from 1/4in up to 4in and labelled with each designation. Handy drop-in blocks for detailing bolted connections on steel and structural drawings. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 510.88 KB |
| Files included | 3 |
| Categories | Fasteners, Steel, Structural |
| License | Free for personal and commercial use – no attribution required |
| File | |
|---|---|
| Bolts Hex Finished.dwg | Download |
| Bolts Hex Head.dwg | Download |
| Bolts Square Head.dwg | Download |
