Free AutoCAD Blocks

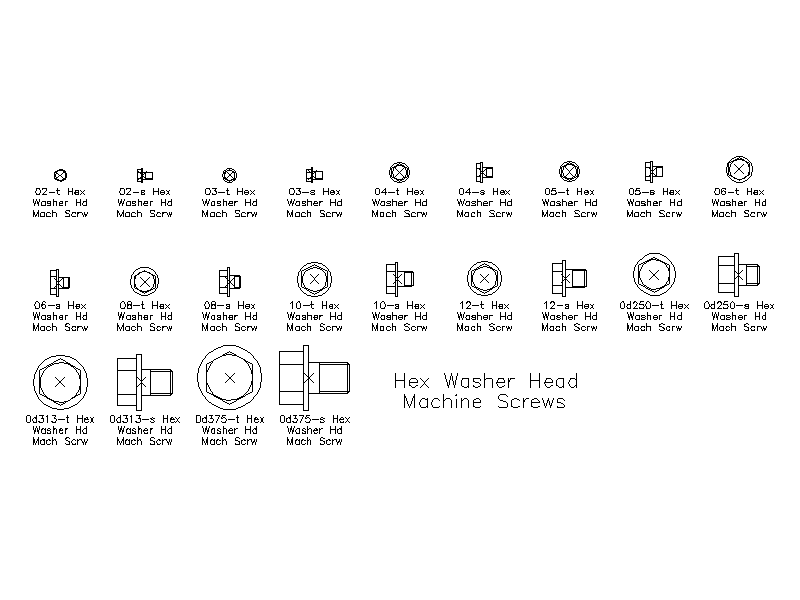

A set of imperial hex washer head machine screw blocks drawn in plan and side view, covering gauge sizes #2 to #12 and inch sizes 1/4in to 3/8in and labelled with each designation. Handy drop-in blocks for detailing fixings on steel and structural drawings. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 97.30 KB |
| Files included | 1 |
| Categories | Fasteners, Steel, Structural |
| License | Free for personal and commercial use – no attribution required |
