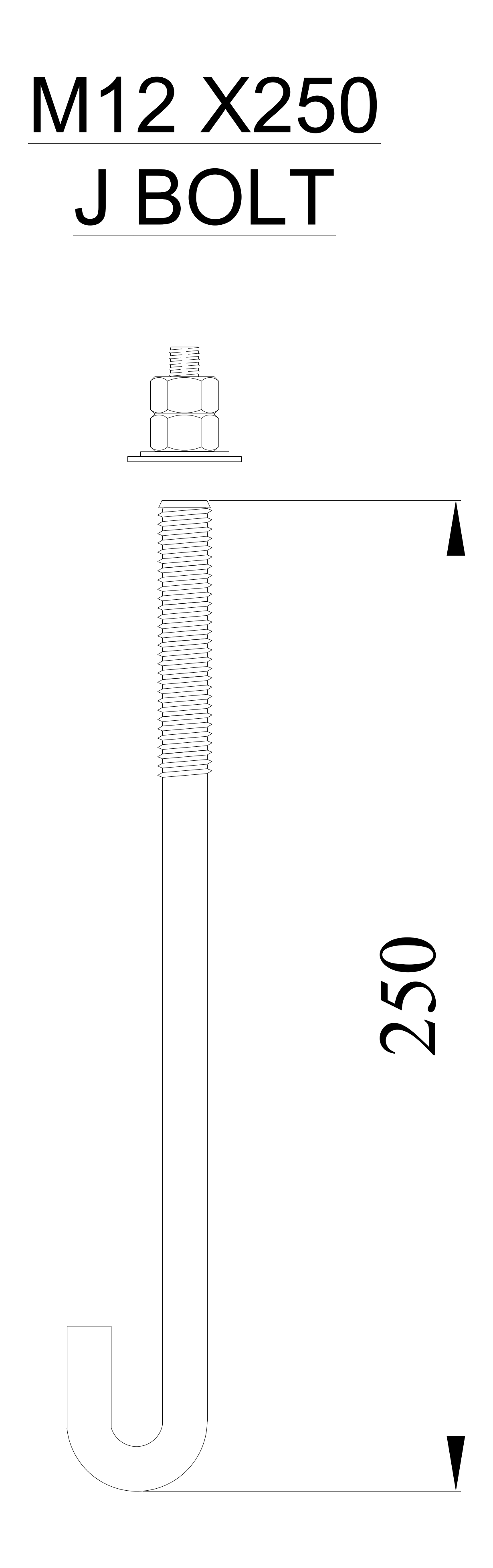

Structural detail of an M12 x250 J bolt, a hooked anchor bolt, drawn in side elevation with its nut, washer and hooked foot. The 250 length is dimensioned. Suits holding-down and cast-in anchor documentation for steel base plate connections. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 106.74 KB |
| Files included | 1 |
| Categories | Fasteners, Steel, Structural |
| License | Free for personal and commercial use – no attribution required |
