Description

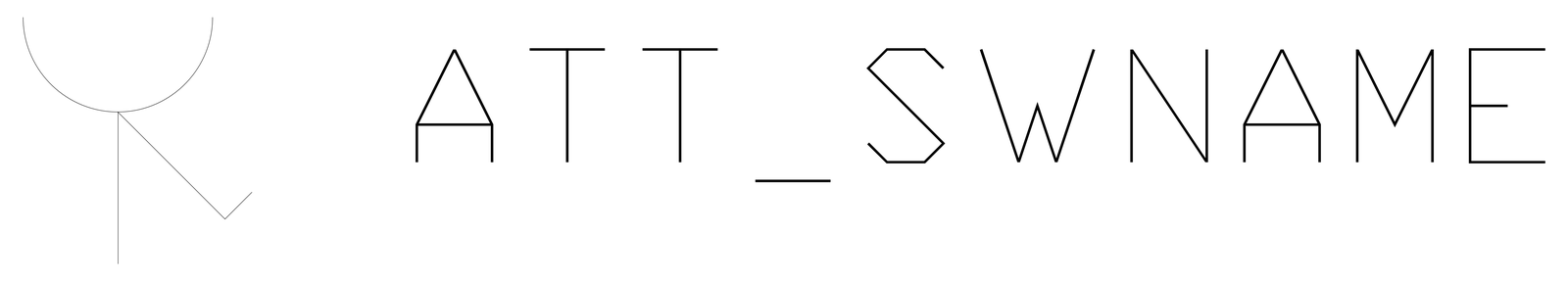

Schematic switch symbol with an attribute for the switch description, supplier and model, which shows as its tag name until the block is inserted. A tidy symbol for control and wiring schematics. A free AutoCAD DWG file download.
Switch Symbol with Description Attribute - Metric
- 8 Downloads
- 18.66 KB File Size
- 1 File Count
Block Details
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 18.66 KB |
| Files included | 1 |
| Categories | Annotations, Electrical Symbols |
| License | Free for personal and commercial use – no attribution required |
