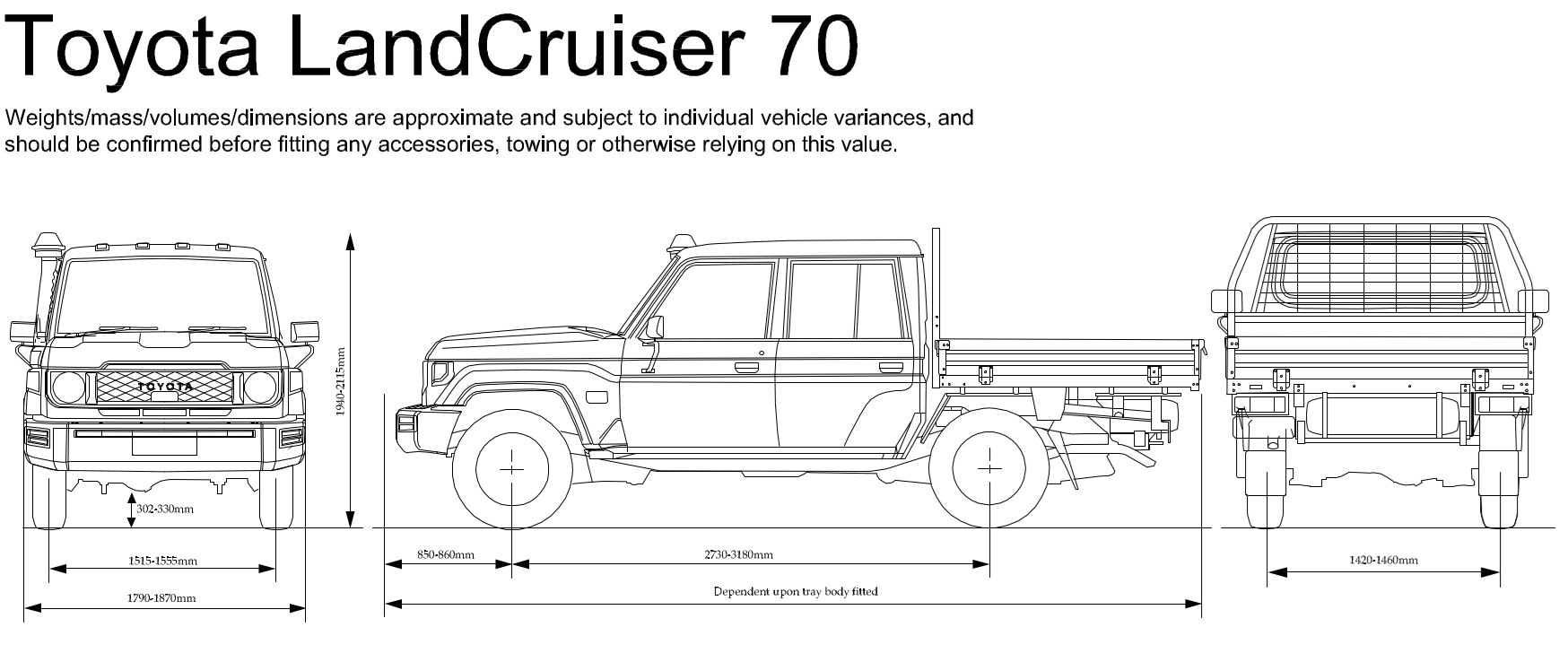

A scaled CAD block of the Toyota LandCruiser 70 Series dual-cab (double-cab chassis) fitted with a tray body, drawn in front, side and rear elevation. The side view captures the twin-cab cab, tray and wheelbase; the front and rear views give the track and body width, with approximate overall dimensions marked – around 1790–1870mm wide and 1940–2115mm high – so the vehicle sits correctly on your drawing.
Drop it onto a site plan, car-park, driveway or turning-circle drawing to show a typical 4WD ute in context and check access and parking-bay clearances. A note reminds that the dimensions are approximate and should be confirmed before relying on them for towing or fit-out.
Find more plant and vehicles in the 4WD and vehicles categories. A free AutoCAD DWG download for all DWG-compatible software.
