Description

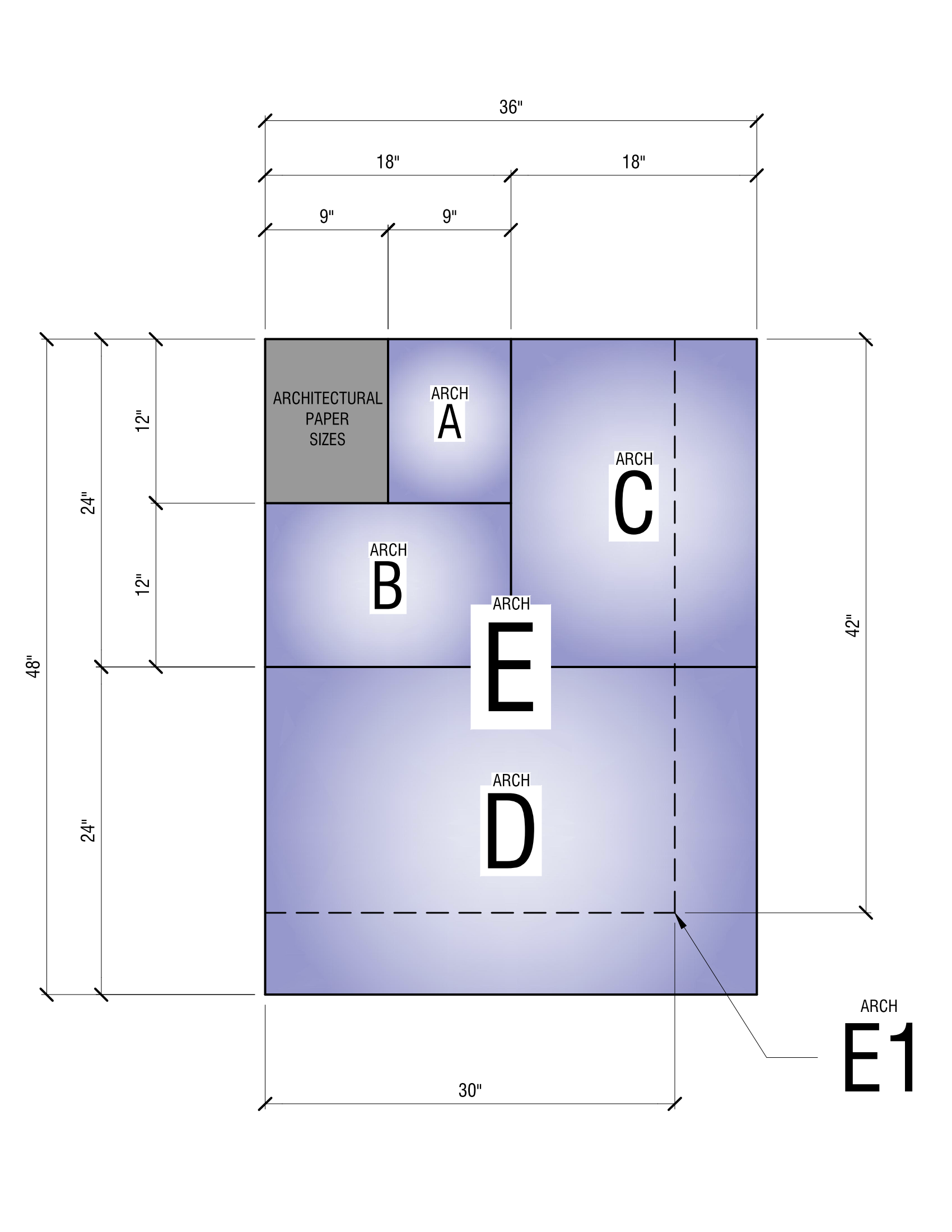

A scaled visualisation of the North American ANSI and ANSI Architectural (ARCH) drawing paper sizes, drawn as nested rectangles so you can see at a glance how each format relates to the next. The ARCH series is laid out from ARCH A (9″ × 12″) through ARCH B (12 × 18), ARCH C (18 × 24), ARCH D (24 × 36) and ARCH E (36 × 48), with the ARCH E1 (30 × 42) size shown as well – the sheet sizes used across the United States and Canada instead of the ISO A-series.
Keep it as a quick reference when you are setting up a titleblock or a plot layout and need to check the sheet dimensions, or drop it into a standards sheet for your office. Every rectangle is dimensioned in inches so there is nothing to look up.
Pair it with the titleblocks and the other annotation blocks. A free AutoCAD DWG download for all DWG-compatible software.
