Description
Streamline your mechanical drafting and industrial design workflow with this extensive collection of FAG Ball Bearings CAD blocks. Perfect for machinery design, automotive assemblies, and detailed engineering schematics, this highly accurate DWG library provides a vast array of standard-sized ball bearing cross-sections.
Optimized for mechanical engineers, designers, and drafters globally, this CAD asset ensures the precise spatial representation of standard FAG bearing profiles, saving hours of manual drafting time for complex mechanical layouts.
Included in this CAD block library:

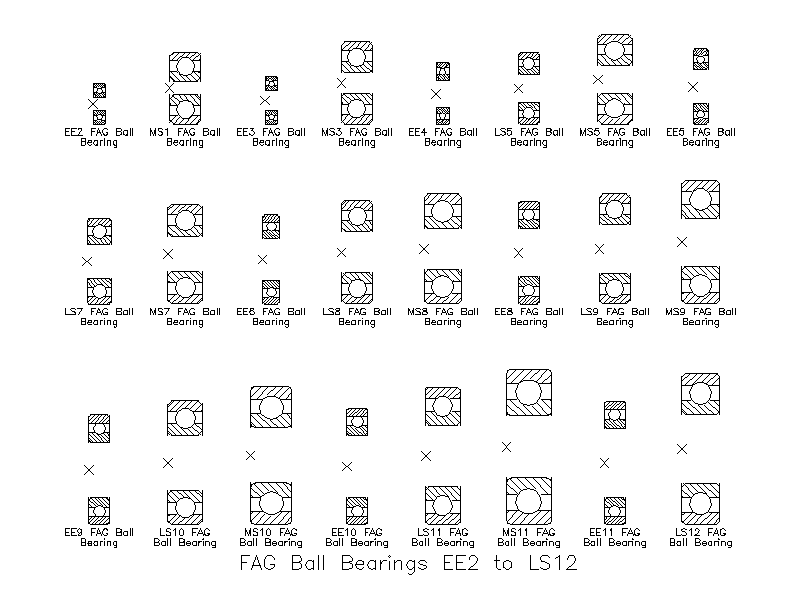

- EE Series Bearings: Detailed cross-section views covering sizes from EE2 through EE11.

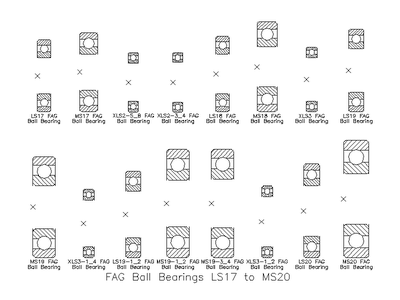

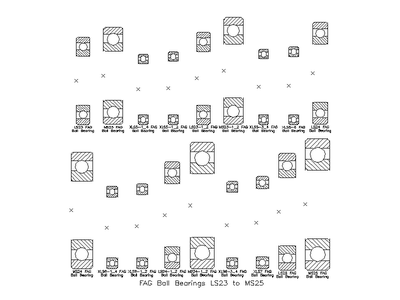

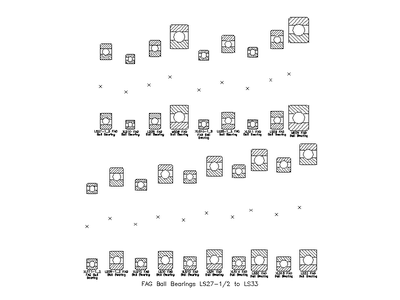

- LS Series (Light Series) Bearings: A comprehensive selection spanning from LS5 all the way up to LS33.

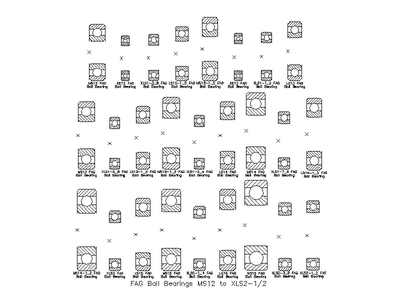

- MS Series (Medium Series) Bearings: Medium-duty bearing cross-sections ranging from MS1 up to MS28,

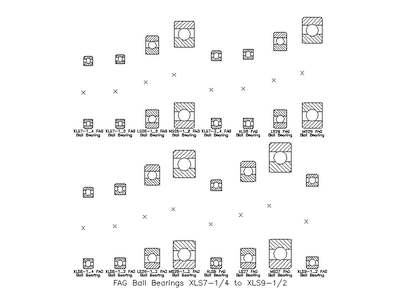

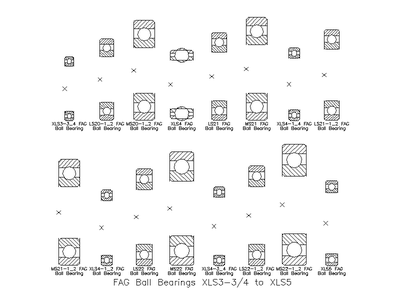

- XLS Series (Extra Light Series) Bearings: A wide variety of extra-light bearing layouts covering sizes from XLS1-3/8 up to the massive XLS9-1/2
Download today to enhance drafting accuracy, guarantee correct component clearances, and bring professional polish to your AutoCAD engineering drawings.
