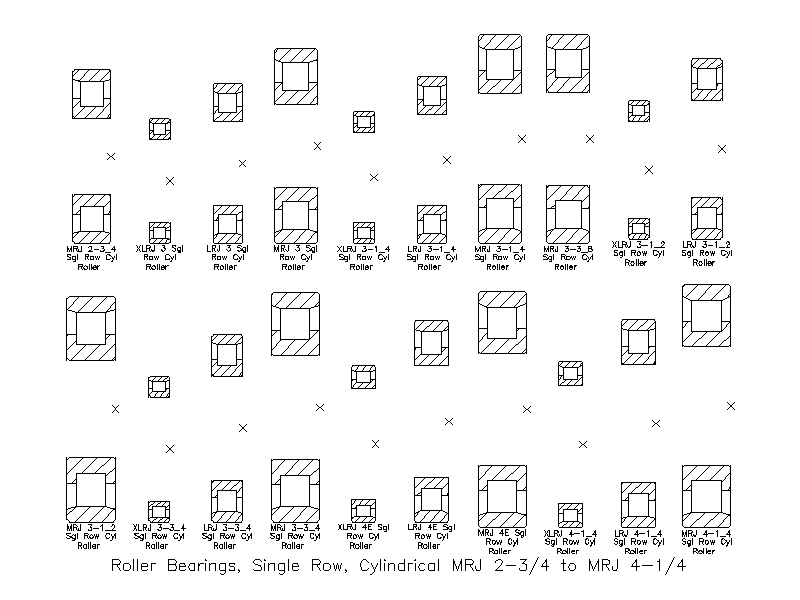

A sheet of single row cylindrical roller bearing blocks drawn as 2D cross-sections, covering the LRJ, MRJ and XLRJ series from MRJ 2-3/4 to MRJ 4-1/4, each labelled with its designation. A handy reference for machine and shaft assembly drafting. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 147.46 KB |
| Files included | 1 |
| Categories | Bearings, Mechanical |
| License | Free for personal and commercial use – no attribution required |
