Description

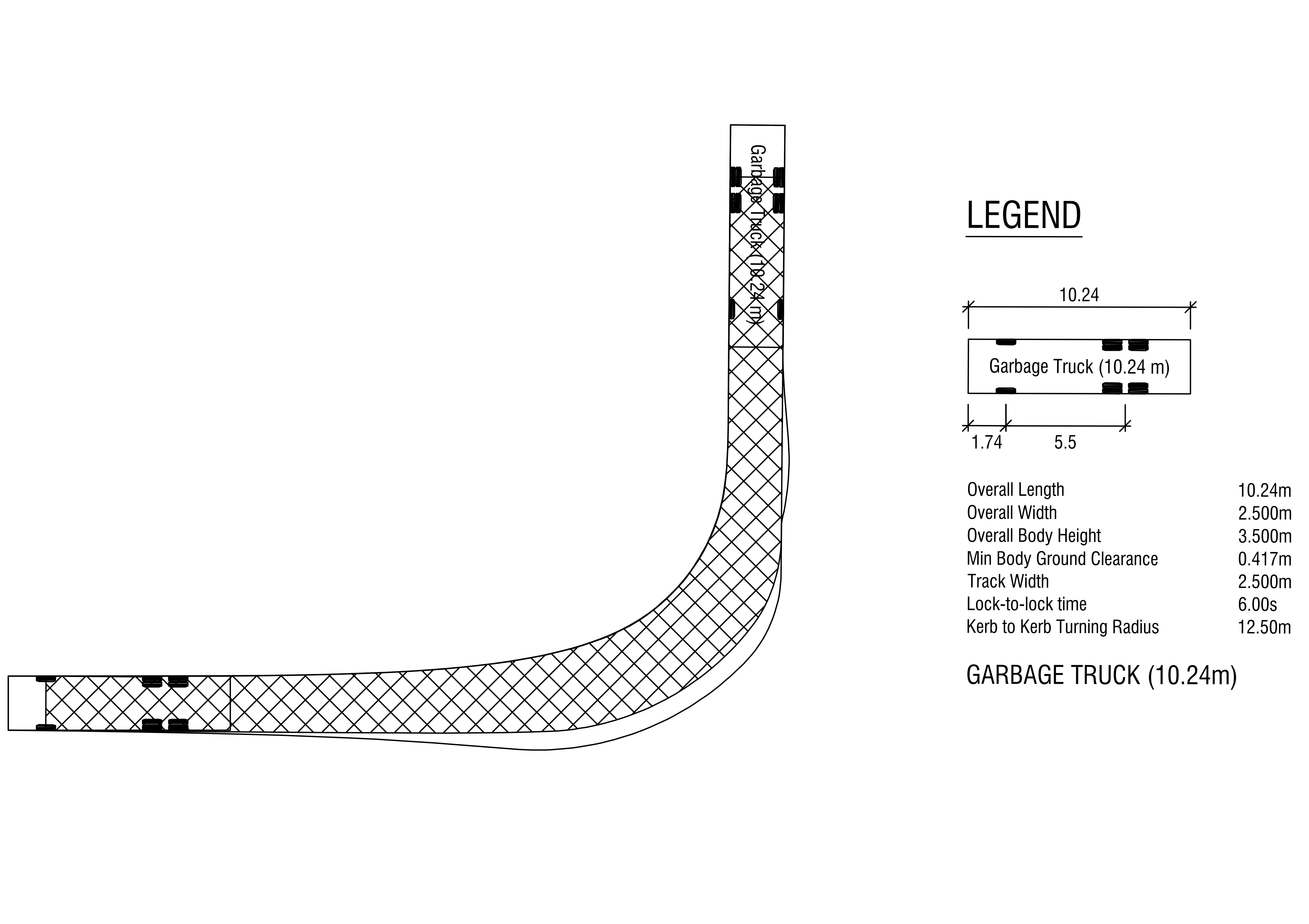

A garbage truck turning plan (swept-path template) showing the tyre tracks and body envelope a 10.24m waste collection vehicle needs to negotiate a 90° turn. The hatched sweep and the outer body line map the space the truck actually occupies through the corner, so you can check that a road, driveway, cul-de-sac or bin-collection point gives enough room without mounting kerbs.
A legend gives the vehicle dimensions used to generate it – 10.24m overall length, 2.5m width, 3.5m body height, 2.5m track, a 6.0s lock-to-lock time and a 12.5m kerb-to-kerb turning radius – so the template can be matched to your design vehicle.
Drop it onto a site or subdivision plan to verify access. Find more swept paths and vehicles in the trucks & vehicles and civil categories. A free AutoCAD DWG download.
