Description

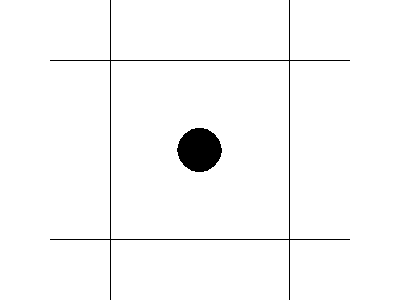

A mesh square reinforcing symbol – the crossed gridlines with solid filled dot marking a mesh zone on structural slab plans, drawn at annotation weight. The dot-in-grid convention identifies mesh type zones without hatching entire slab areas.
Use it across slab plans with a mesh schedule keying the zones, alongside the slab thickness and span symbols from this site's structural annotation family. A free DWG format download for AutoCAD and compatible software.
