Description

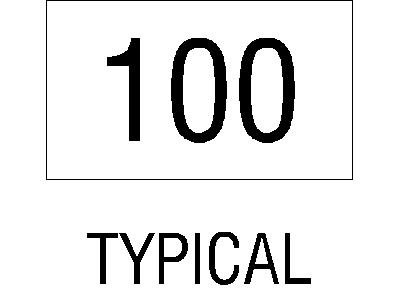

A slab thickness symbol sized for 2.0 mm text – the boxed thickness value with TYPICAL notation, the compact version of this structural plan annotation for dense framing plans. Boxing the value keeps it distinct from levels and dimensions.
Use it zone by zone across slab plans with the value edited to suit, paired with the 2.0 mm section and detail annotation family on this site for consistent lettering. A free DWG format download for AutoCAD and compatible software.
