Description

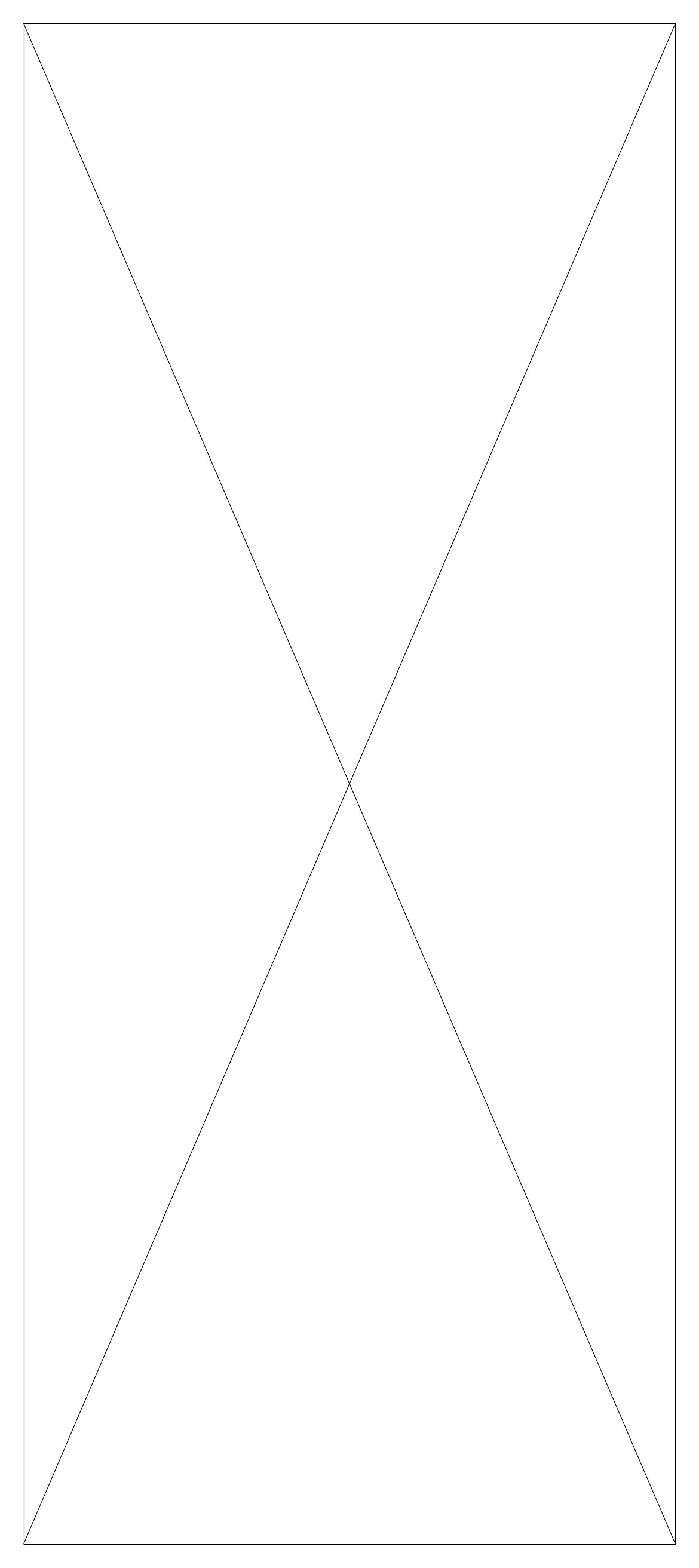

The standard section symbol for a timber stud: a rectangle crossed by diagonals, drawn in imperial units. Drop it into wall sections and framing details wherever a stud is cut. A free AutoCAD DWG file download.
Timber Stud Section Symbol - Imperial
- 6 Downloads
- 20.37 KB File Size
- 1 File Count
Block Details
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 20.37 KB |
| Files included | 1 |
| Categories | Annotations, Structural Symbols, Timber |
| License | Free for personal and commercial use – no attribution required |
