Free AutoCAD Blocks

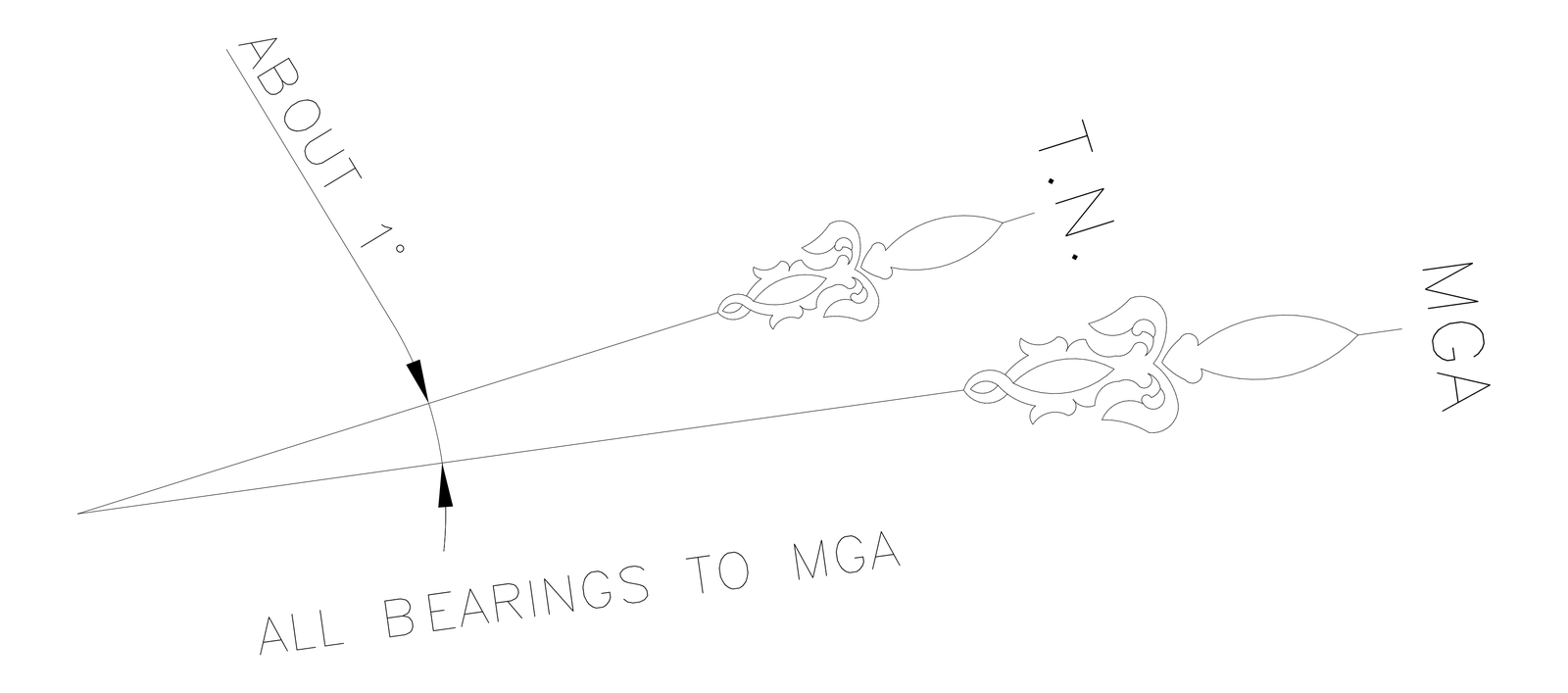

A survey north point block showing true north and MGA grid north as two ornate arrows offset by the grid convergence, annotated about 1 degree with an all bearings to MGA note. A handy reference for survey and site plans that must state the bearing datum. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 87.52 KB |
| Files included | 1 |
| Categories | Annotations, North Point Symbols, General Symbols |
| License | Free for personal and commercial use – no attribution required |
