Description

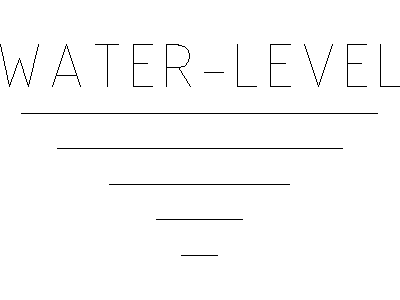

A water level symbol sized for 2.0 mm annotation text – the WATER-LEVEL label over the conventional diminishing horizontal bars that mark a liquid surface on sections and details. The stacked-bar convention is read universally across civil, hydraulic and structural drawings.
Use it to mark water surfaces in tanks, pits, dams, pools, ponds and flood levels on sections; pair it with a reduced level callout for design water levels. It matches the 2 mm annotation set (section cuts, titles and markers) available on this site. A free DWG block download.
