Description

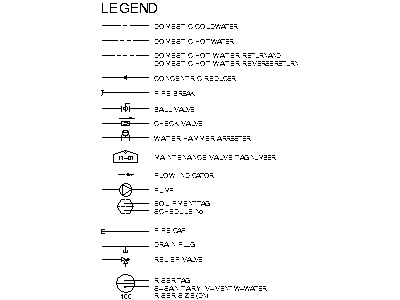

A plumbing building-services legend drawn as a ready-to-insert schedule – pipeline linetypes for domestic cold water, hot water, hot water return and reverse return, plus symbols for concentric reducers, pipe breaks, ball and check valves, water hammer arresters, maintenance valve tags, flow indicators, pumps, equipment tags, pipe caps, drains, relief valves and sanitary/vent/water riser tags with size callouts.
Drop it onto your hydraulic services sheets as the drawing legend, or harvest individual symbols into your library. The larger piping and plumbing symbols list on this site covers the extended symbol set. A free DWG download.
