Description

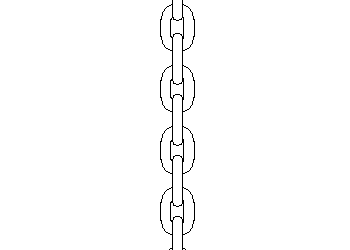

A straight run of standard link chain drawn in elevation – four full links with part links at each end, so the block can be arrayed or stretched end-to-end to build a chain of any length. The double-line linework gives the links real thickness and reads well at detail scales.
Use it for lifting and rigging details, chain slings on crane drawings, safety barrier chains, gate hardware and playground equipment. Combine it with the chain block and pull lift blocks on this site for complete lifting arrangement drawings. A free DWG file for AutoCAD and compatible CAD software.
