Description

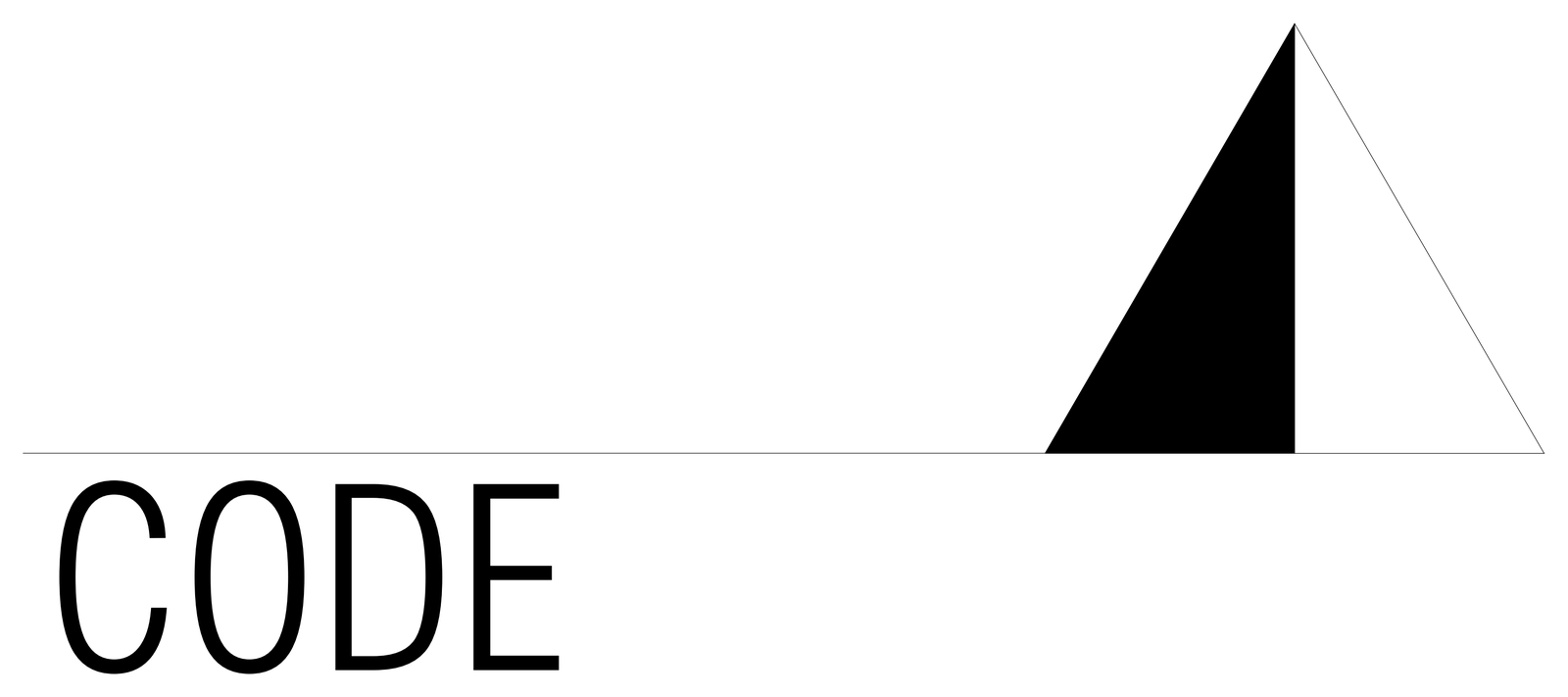

A ceiling level marker drawn as a half-filled triangle on a level line, with a CODE attribute for the level label that is filled in when the block is inserted. Suits sections and interior elevations. A free AutoCAD DWG file download.
Ceiling Level Marker with Code Attribute
- 3 Downloads
- 56.88 KB File Size
- 1 File Count
Block Details
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 56.88 KB |
| Files included | 1 |
| Categories | Annotations, Architectural Symbols |
| License | Free for personal and commercial use – no attribution required |
