Description

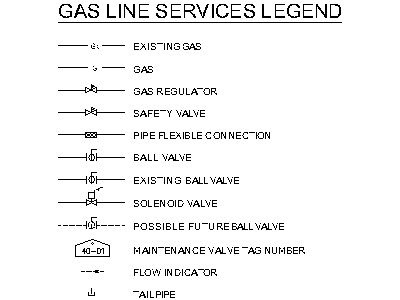

A gas line services legend drawn as a ready-to-insert schedule – linetypes for existing and new gas mains, plus symbols for gas regulators, safety valves, pipe flexible connections, ball valves (new, existing and possible future), solenoid valves, maintenance valve tag numbers, flow indicators and tailpipes.
Drop it onto gas reticulation and building services drawings as the sheet legend, or copy individual symbols into your own library. It pairs with the plumbing and piping legends on this site to cover the full hydraulic documentation set. A free AutoCAD DWG download.
