Description

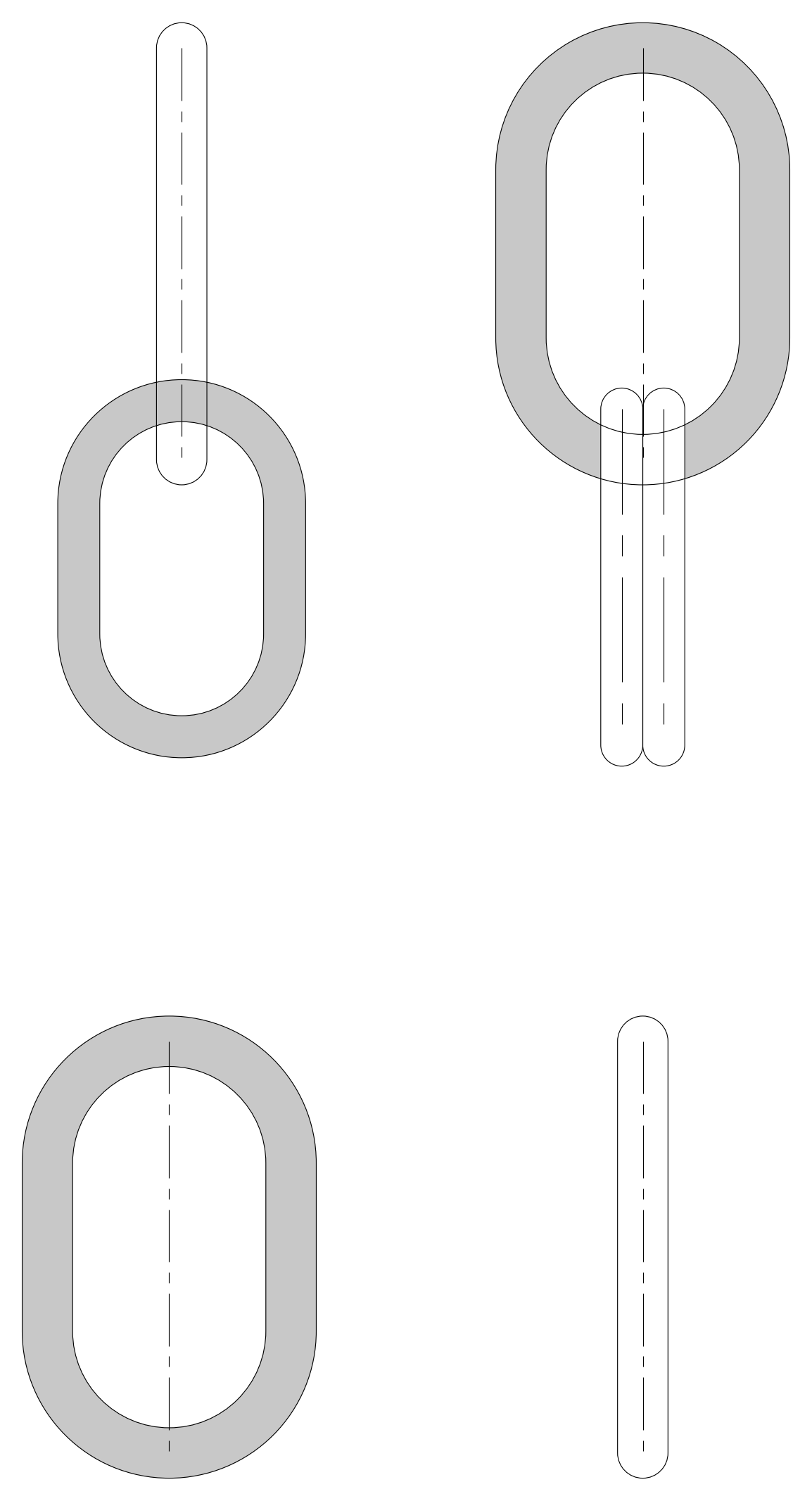

Master links drawn in four views, shown singly and coupled to a second link and to a pair of legs. A small but frequently needed component for chain sling and rigging assembly details. A free AutoCAD DWG file download.
Master Link
- 71 Downloads
- 58.36 KB File Size
- 1 File Count
Block Details
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 58.36 KB |
| Files included | 1 |
| Categories | Lifting, Mechanical |
| License | Free for personal and commercial use – no attribution required |
