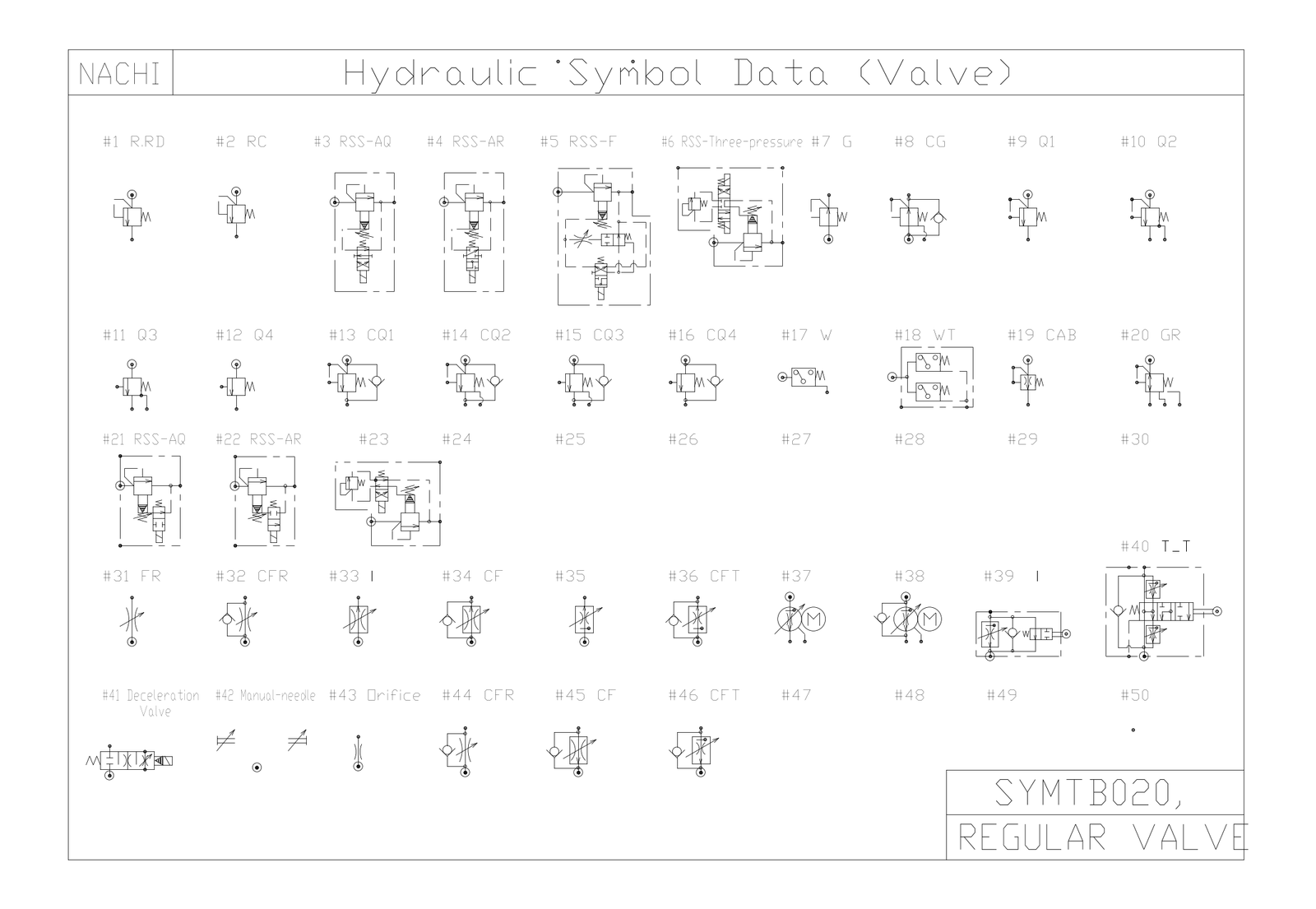

A library of NACHI regular hydraulic valve symbols — relief, reducing, sequence and counterbalance valves, flow control and throttle valves, deceleration valves, orifices and manual needle valves — drawn to standard schematic conventions for hydraulic circuit drafting. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 112.48 KB |
| Files included | 1 |
| Categories | Annotations, Hydraulic and Plumbing Symbols |
| License | Free for personal and commercial use – no attribution required |
