Description

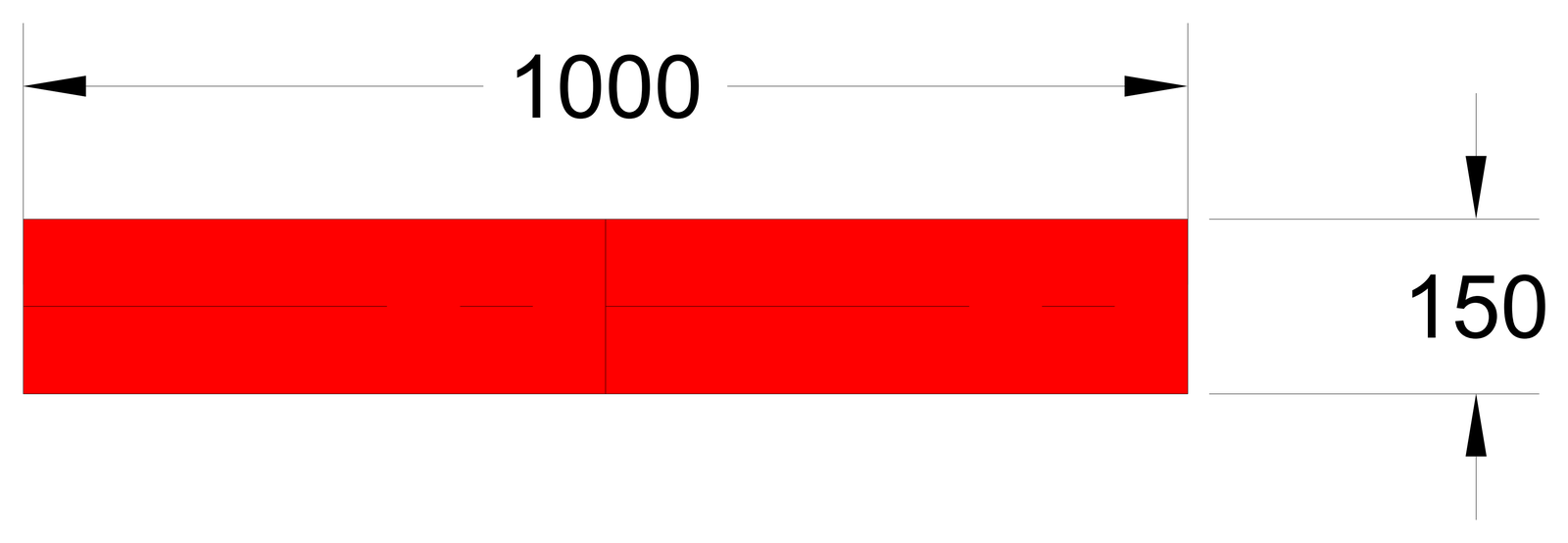

An outrigger mat drawn in elevation and dimensioned 1000 by 150. A simple but essential block for showing crane and plant set-up, ground bearing pressure and outrigger positions on lift plans. A free AutoCAD DWG file download.
Outrigger Mat
- 27 Downloads
- 50.92 KB File Size
- 1 File Count
Block Details
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 50.92 KB |
| Files included | 1 |
| Categories | Lifting, Mechanical |
| License | Free for personal and commercial use – no attribution required |
