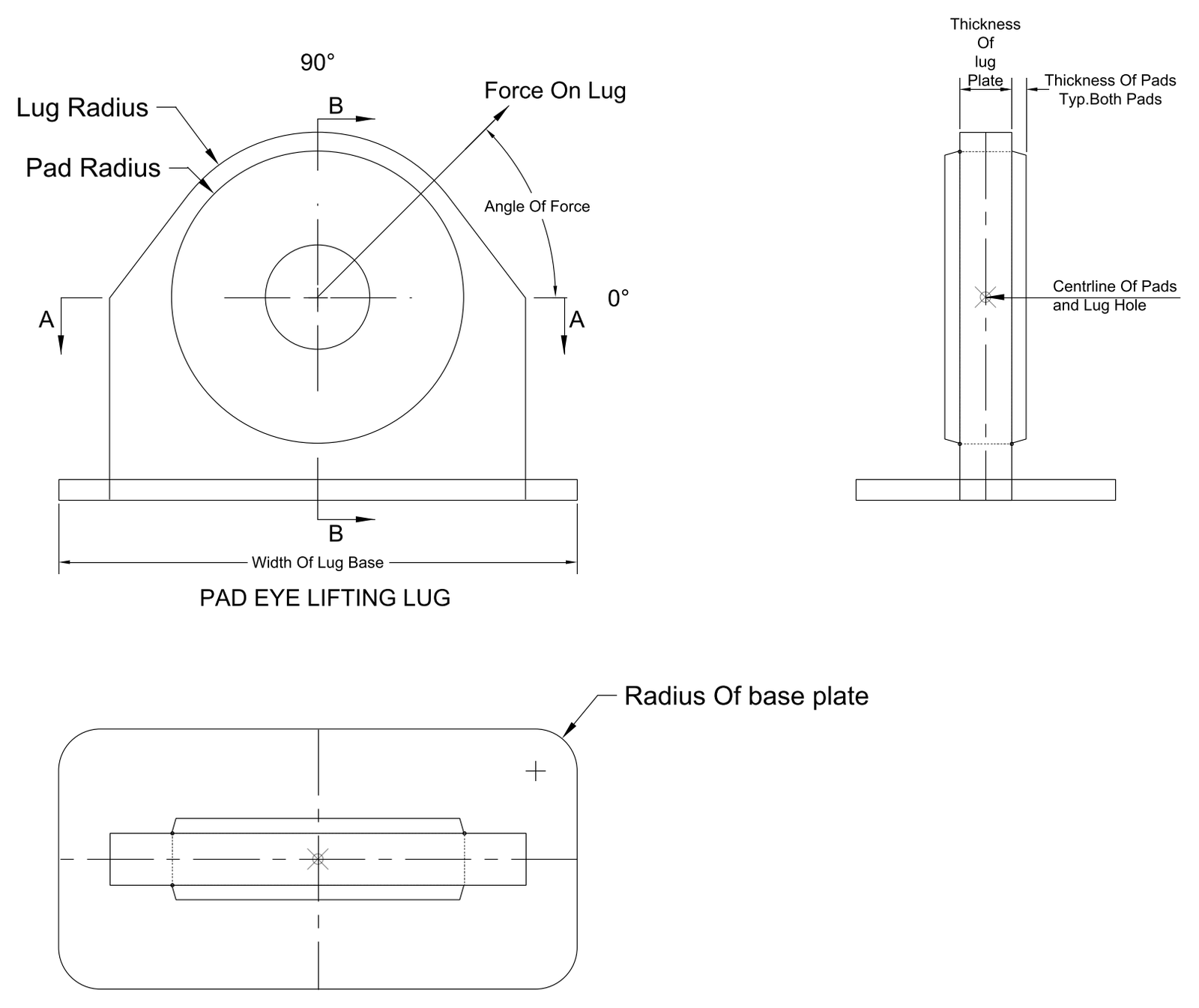

A pad eye lifting lug drawn in elevation, side view and base-plate plan, annotated with lug radius, pad radius, hole size, plate and pad thicknesses, and the angle of force on the lug. A useful reference for lifting-lug design and fabrication details. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 142.55 KB |
| Files included | 2 |
| Categories | Lifting, Mechanical, Structural |
| License | Free for personal and commercial use – no attribution required |
