Description

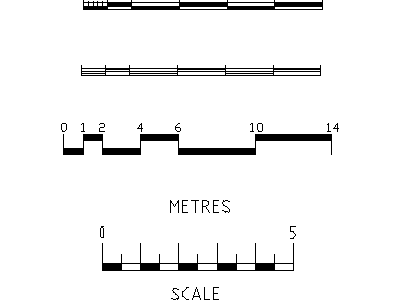

A set of graphic scale bars for metric drawings, including alternating filled-segment bars and a stepped bar reading 0–14 metres, plus a fine-division 0–5 metre bar with METRES and SCALE labelling. Graphic scale bars keep drawings honest when sheets are printed at the wrong size or viewed on screen – the bar scales with the drawing, so measurements stay verifiable.
Insert the bar matching your sheet scale, or keep the whole set in your template. Pairs with the titleblocks and north point symbols on this site. A free DWG download for AutoCAD and compatible CAD software.
