Free AutoCAD Blocks

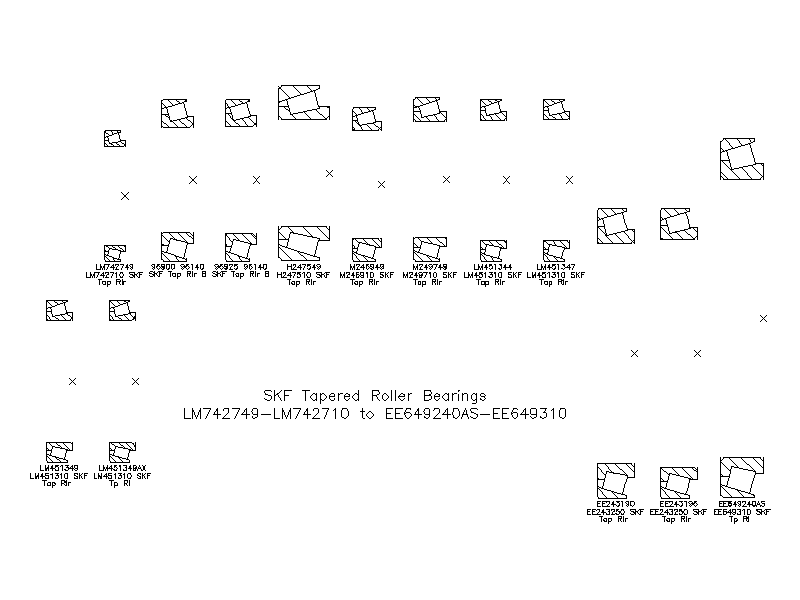

A sheet of SKF tapered roller bearing blocks drawn as 2D half-sections, covering part numbers from LM742749-LM742710 to EE649240AS-EE649310, with the cup, cone and tapered rollers shown and each bearing labelled with its designation. A handy reference for machine, shaft and hub assembly drafting. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 102.75 KB |
| Files included | 1 |
| Categories | Bearings, Mechanical |
| License | Free for personal and commercial use – no attribution required |
