Free AutoCAD Blocks

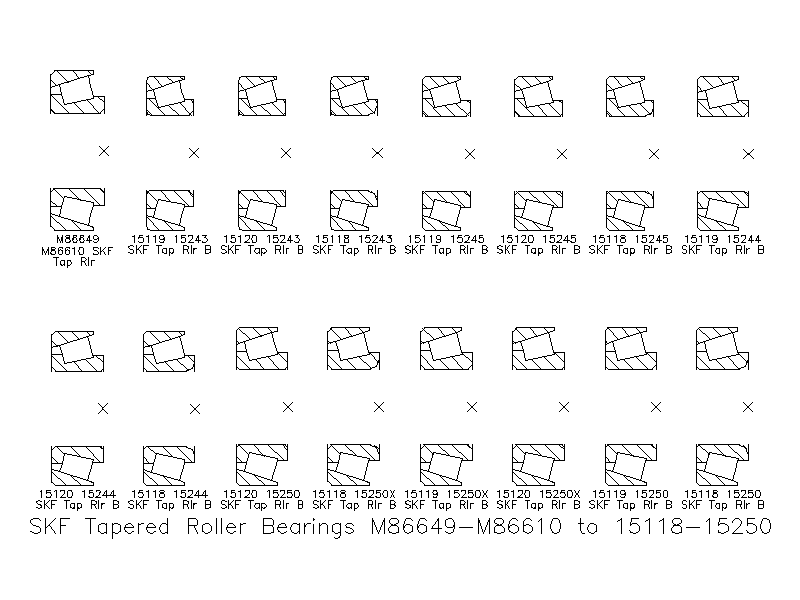

A sheet of SKF tapered roller bearing blocks drawn as 2D half-sections, covering part numbers from M86649-M86610 to 15118-15250, with the cup, cone and tapered rollers shown and each bearing labelled with its designation. A handy reference for machine, shaft and hub assembly drafting. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 119.68 KB |
| Files included | 1 |
| Categories | Bearings, Mechanical |
| License | Free for personal and commercial use – no attribution required |
