Super Silt Fence Installation Detail

3 Downloads
658.87 KB File Size
1 File Count

Description

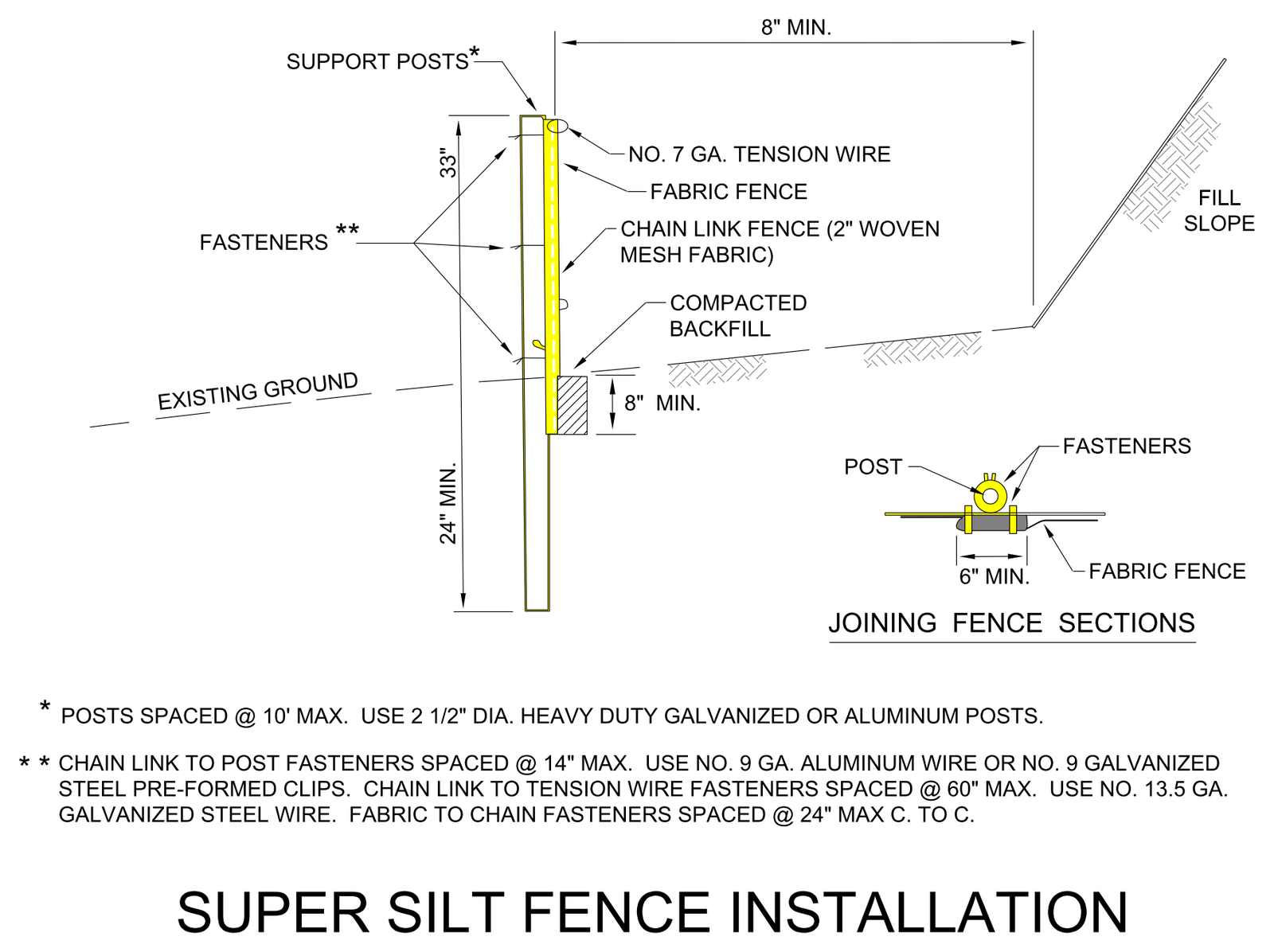

Section detail of a super silt fence: filter fabric fastened to a chain link fence on support posts with a No. 7 gauge tension wire, keyed into compacted backfill at the toe of a fill slope. Includes a detail for joining fence sections with a 6" minimum overlap, plus notes on post and fastener spacing. A free AutoCAD DWG file download.

Block Details

File format	DWG – opens in AutoCAD and all DWG-compatible CAD software
File size	658.87 KB
Files included	1
Categories	Civil, Civil Details
License	Free for personal and commercial use – no attribution required
