Description

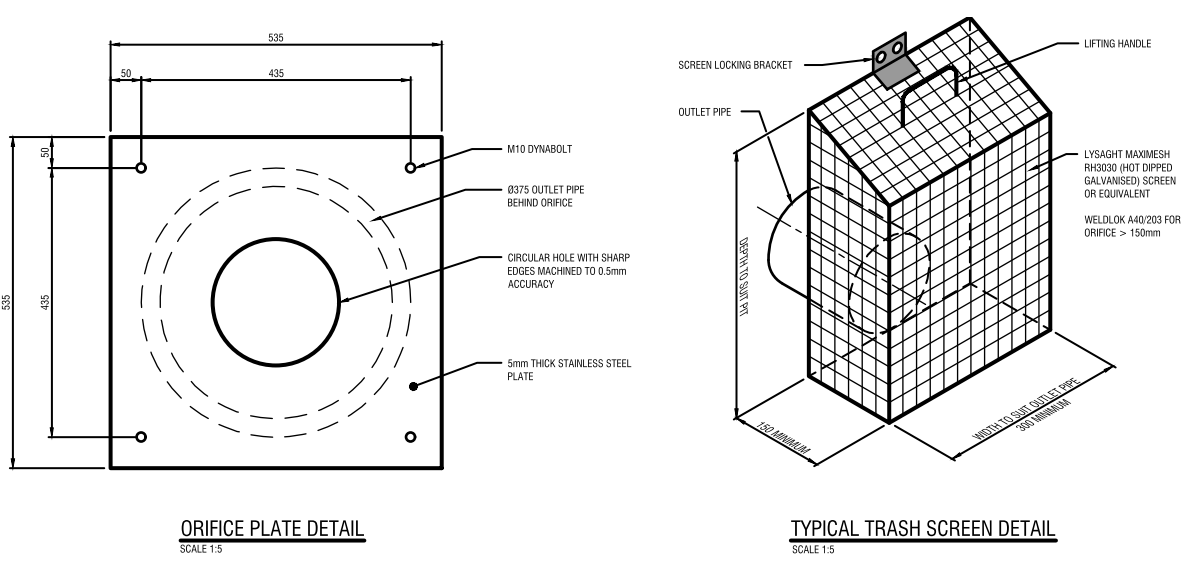

Stormwater tank trash screen details drawn at 1:5 – two annotated details: a stainless steel orifice plate (5 mm plate, machined circular hole to 0.5 mm accuracy, M10 dynabolts, dimensioned at 535 square over the Ø375 outlet) and a typical trash screen in isometric, specifying Lysaght Maximesh RH3030 galvanised screen, locking bracket, lifting handle and minimum clearances to the outlet pipe.
Ready to drop into OSD and stormwater quality documentation – the specification callouts are already written. More civil and drainage details live on this site. A free DWG download.
