Free AutoCAD Blocks

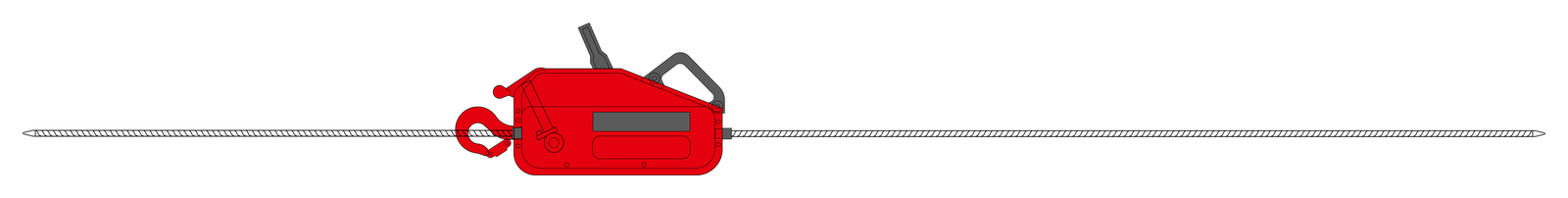

A Tirfor type wire rope pulling winch drawn in side elevation with the rope running right through the machine, showing the anchor hook, operating and reverse levers and the carry handle. Useful for pulling, tensioning and recovery details. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 56.43 KB |
| Files included | 1 |
| Categories | Lifting, Mechanical |
| License | Free for personal and commercial use – no attribution required |
