A library of imperial swing door blocks in plan view, drawn as leaf-and-swing-arc symbols in single and double-leaf configurations across widths from 2ft to 2ft 10in, including left- and right-hand variants. Handy door blocks for laying up floor plans and setting out openings. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 293.04 KB |
| Files included | 11 |
| Categories | Doors |
| License | Free for personal and commercial use – no attribution required |
| Preview | File | |
|---|---|---|
 |
2ft0in Single Door (left).DWG | Download |
 |

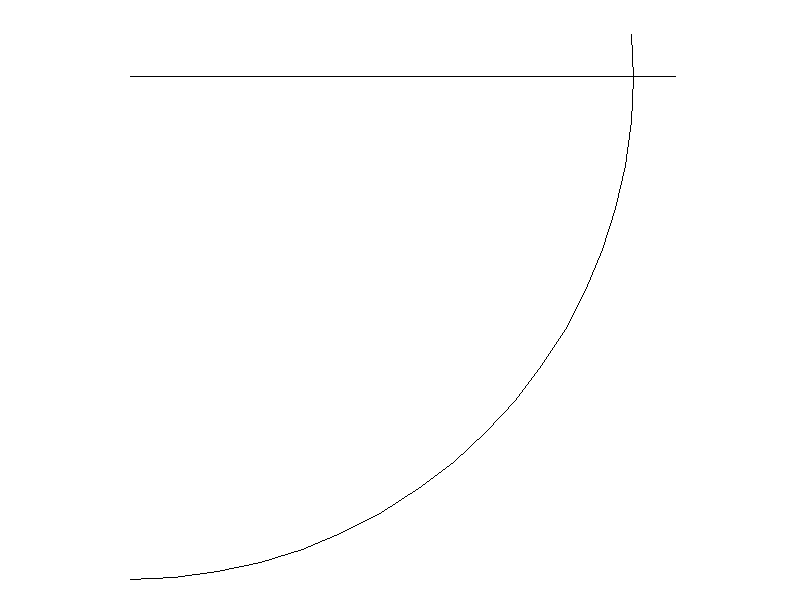

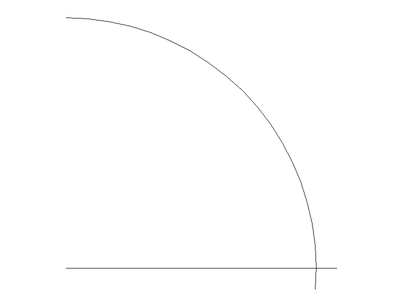

2ft0in Single Door (right).DWG | Download |
 |

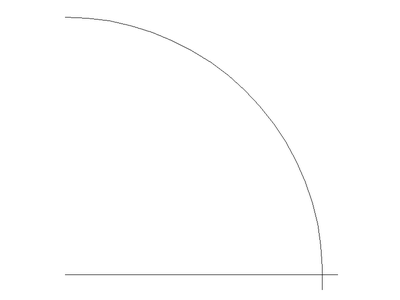

2ft10in Single Door (right).DWG | Download |
 |
2ft10in Single Door.DWG | Download |
 |

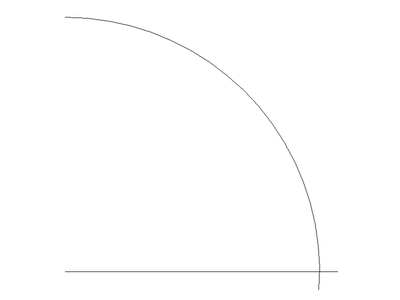

2ft4in Single Door (right).DWG | Download |
 |
2ft4in Single Door.DWG | Download |
 |

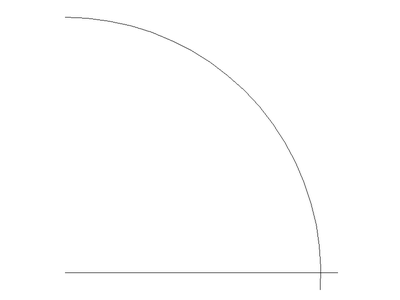

2ft6in Single Door (right).DWG | Download |
 |

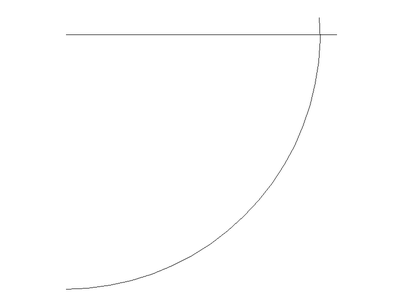

2ft6in Single Door.DWG | Download |
 |

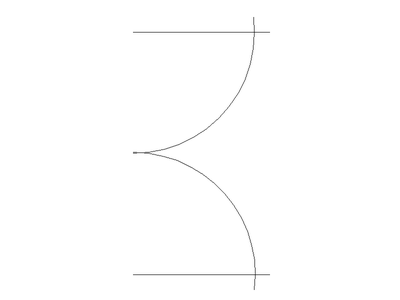

2ft8in Double Doors.dwg | Download |
 |
2ft8in Single Door (right).DWG | Download |
 |
2ft8in Single Door.DWG | Download |
