Free AutoCAD Blocks

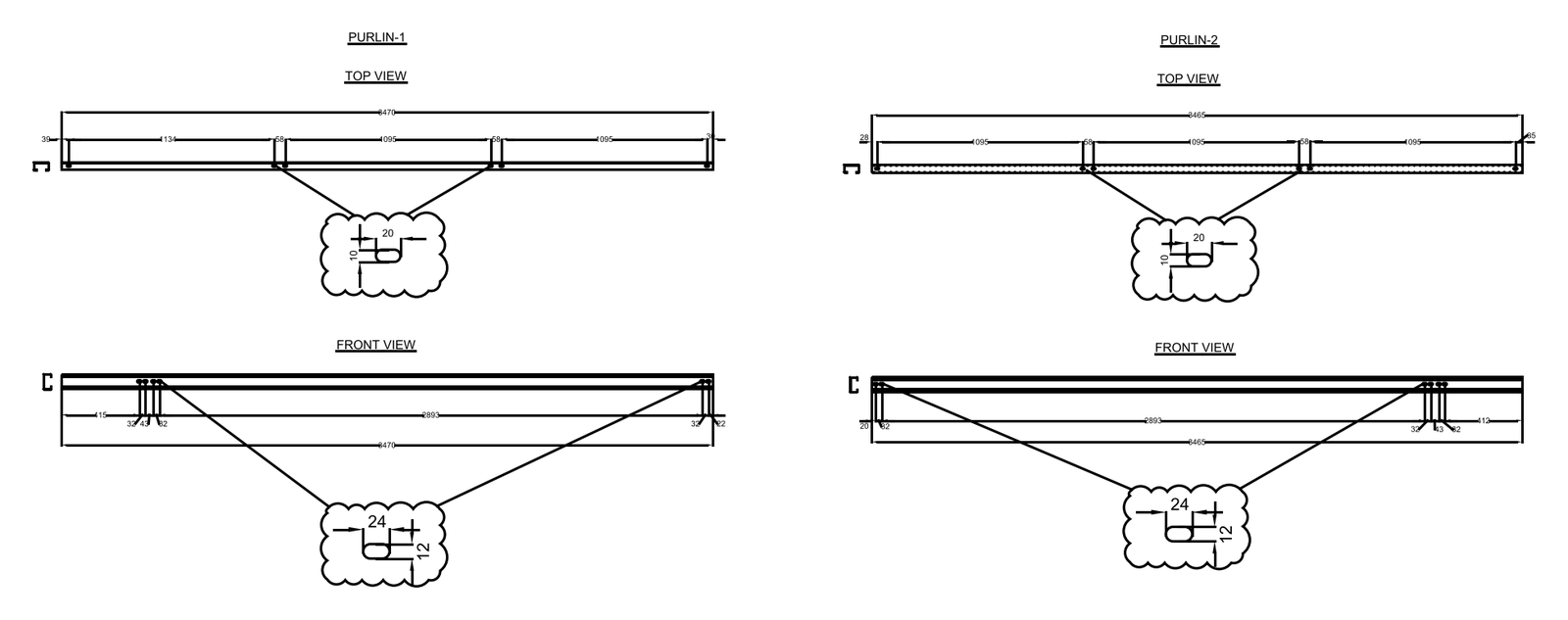

Shop detail sheet for two cold-formed C purlins, Purlin 1 and Purlin 2, each drawn in top view and front view with dimensioned bolt hole setouts. Enlarged detail bubbles call up the hole sizes at each end. Ready for steel purlin fabrication and shop drawings. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 144.17 KB |
| Files included | 1 |
| Categories | Steel, Structural Details |
| License | Free for personal and commercial use – no attribution required |
