Description

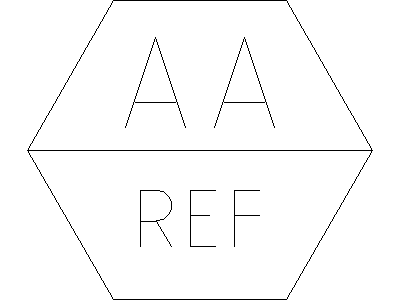

A detail callout bubble sized for 2.5 mm text – the hexagonal reference symbol split for detail letters over the sheet reference, drawn large and clear. The hexagon shape separates detail references from circular section and grid bubbles the moment the sheet is scanned.
Place it over the detail area on plans and sections, edit the references, and pair it with the matching detail title block on this site. The full 2.0 and 2.5 mm annotation families keep a documentation set consistent. A free DWG format download.
