Description

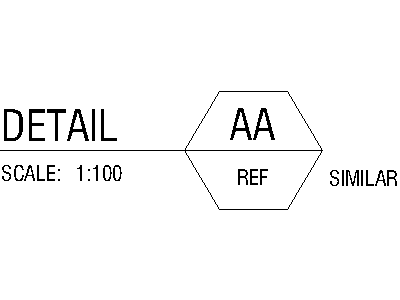

A detail title annotation sized for 2 mm text – the DETAIL heading with underline, scale note (shown 1:100), and the hexagonal reference bubble carrying the detail letters over the sheet reference, with a SIMILAR qualifier ready beside it. The hexagon distinguishes detail references from the circular section bubbles at a glance.
Drop it under each detail, edit the references, and the sheet cross-referencing stays consistent. It matches the section cut and section title blocks of the same text height on this site. A free DWG format download.
