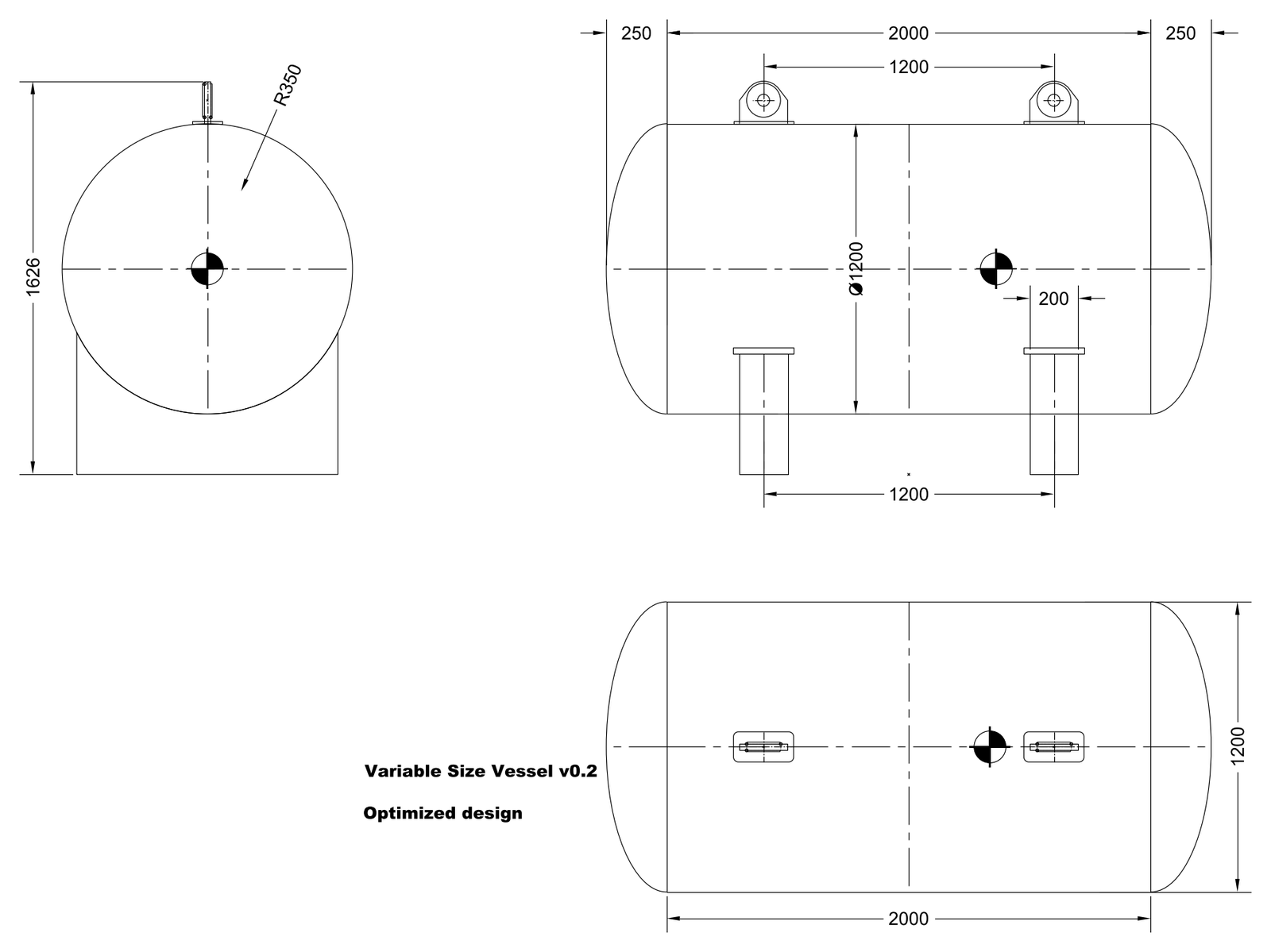

A horizontal steel pressure vessel on saddle supports, drawn in end elevation, side elevation and plan, dimensioned 2000 long by 1200 diameter with dished ends, nozzles and a pair of lifting lugs. Suited to process plant and mechanical services drawings. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 276.20 KB |
| Files included | 2 |
| Categories | Equipment / Fixtures, Steel, Structural |
| License | Free for personal and commercial use – no attribution required |
