Description

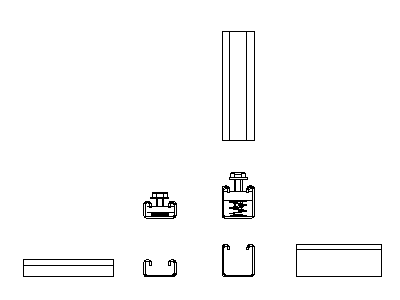

Unistrut-style channel strut sections – P1000 (single) and P3300 (back-to-back) profiles – drawn with matching end elevations, plus channel nut and spring-nut fitting details. These are the profiles used everywhere in building services for supporting cable tray, conduit, ductwork and pipework.
Use the sections in support details and the fitted assemblies in typical mounting details. The linework is accurate to the rolled profile including the inturned lips, so your details read correctly at 1:5 and 1:10. A free AutoCAD DWG file download.
