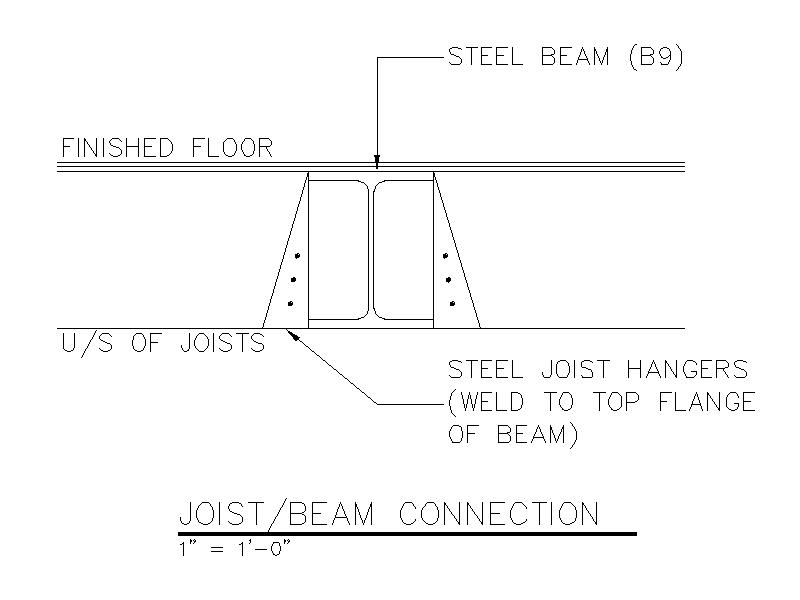

Section detail of a joist to beam connection, showing steel joist hangers welded to the top flange of a steel beam with the finished floor over and the underside of joists set out. A simple reference block for steel floor framing documentation. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 61.63 KB |
| Files included | 1 |
| Categories | Steel, Structural, Structural Details |
| License | Free for personal and commercial use – no attribution required |
