Free CAD Blocks in DWG file format
File downloads for AutoCAD Drafting
Free AutoCAD Blocks

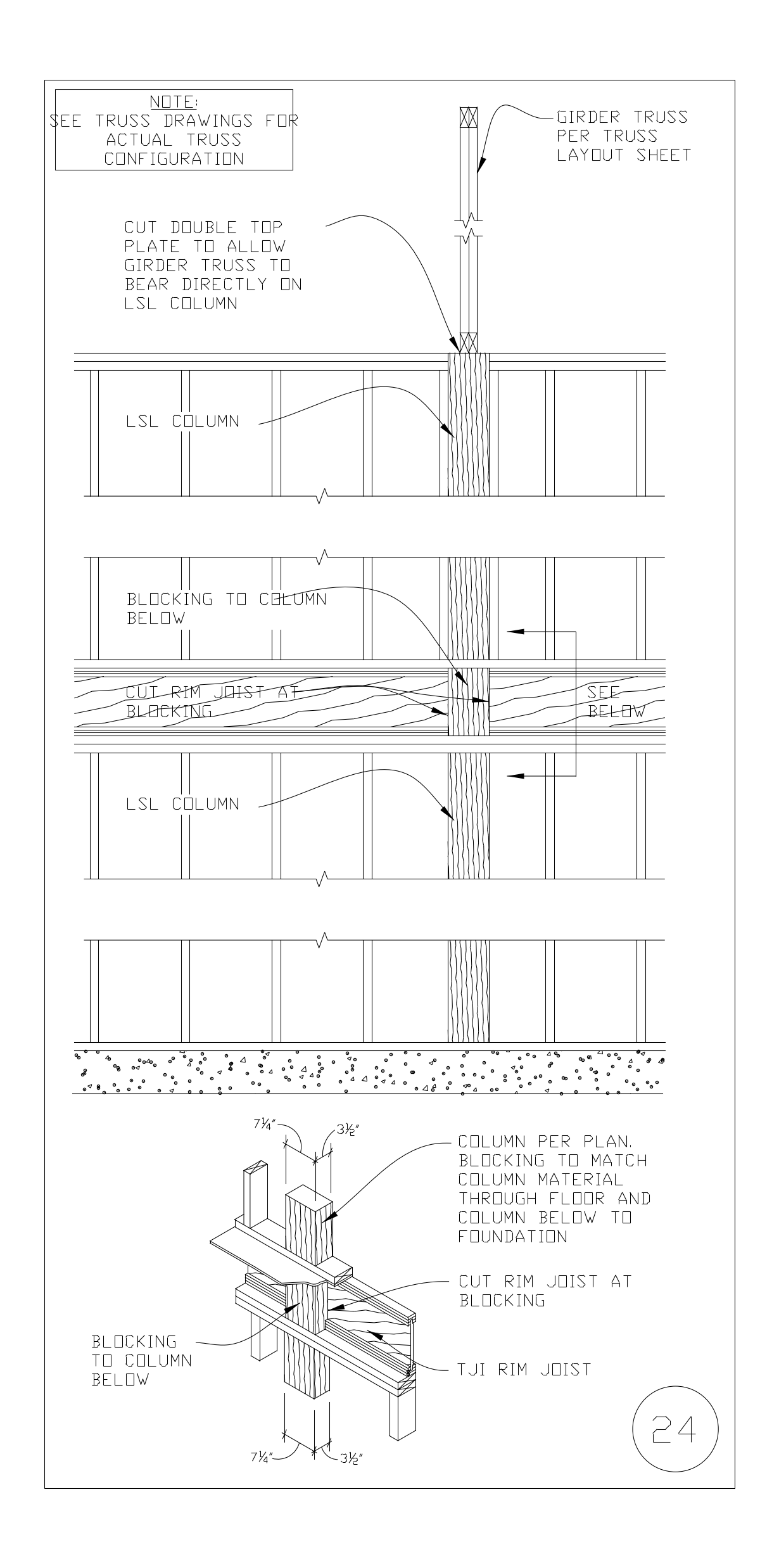

Multi-storey framing detail showing an LSL column carried through the floor to the foundation, with the double top plate cut so a girder truss bears directly on the column and blocking matched to the column material. An isometric shows the rim joist cut at the blocking. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 156.11 KB |
| Files included | 1 |
| Categories | Structural, Structural Details, Timber |
| License | Free for personal and commercial use – no attribution required |
