Free AutoCAD Blocks

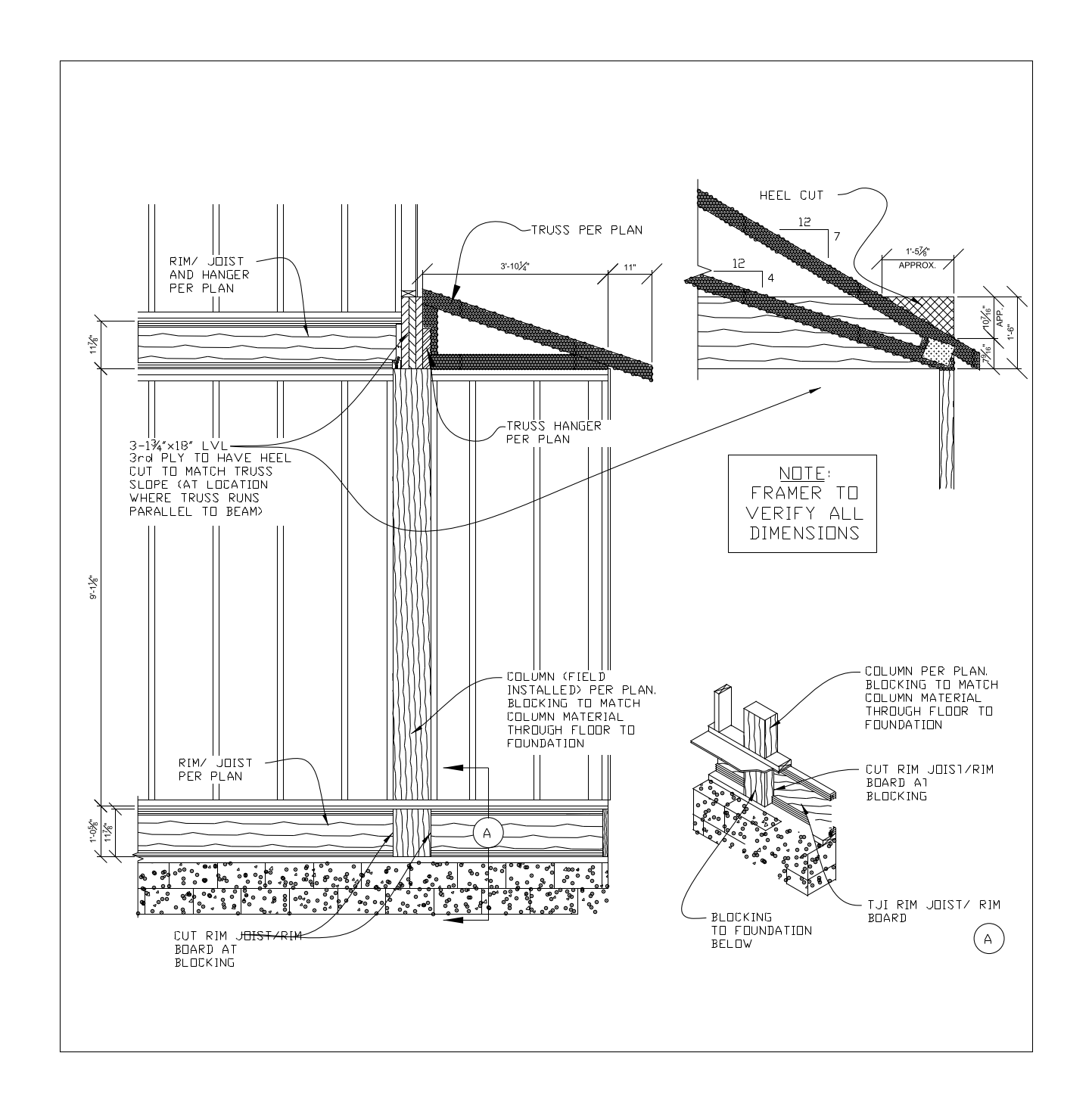

Section detail through a two-storey wall showing a 3-1 3/4"x18" LVL with the third ply heel cut to match the truss slope, a field installed column blocked through the floor to the foundation, and an enlarged heel cut at 12:7 and 12:4 pitches. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 196.56 KB |
| Files included | 1 |
| Categories | Structural, Structural Details, Timber |
| License | Free for personal and commercial use – no attribution required |
