Description

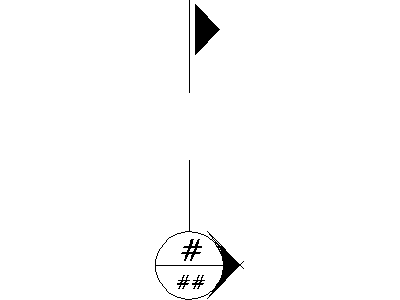

A section cut marker sized for 2.0 mm text – the flag-style cut line terminator and reference bubble with filled direction arrow, split for section number over sheet number with placeholder text ready to edit. The direction arrow shows which way the section looks; the bubble carries the cross-reference.
Sized so its labels plot at 2.0 mm at your working scale – the compact size suits dense detail sheets, while the 2.5 mm version on this site suits general arrangement drawings. Insert at each end of the cut line and fill in the references. A free AutoCAD DWG block download.
