Description

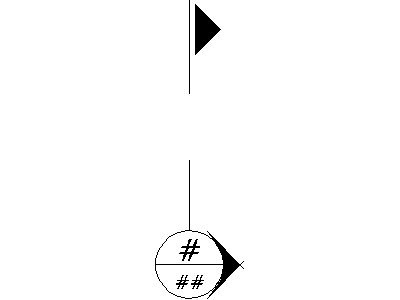

A section cut marker sized for 2.5 mm text – the drawing symbol that shows where a section is taken and which way it looks. The set includes the flag-style cut line terminator and the reference bubble with filled direction arrow, split for section number over sheet number with placeholder text ready to edit.
Sized so its labels plot at 2.5 mm at your working scale, matching common Australian drafting text conventions. Insert at each end of the cut line, fill in the references, and the cross-referencing is done. A free AutoCAD DWG block download.
