Description

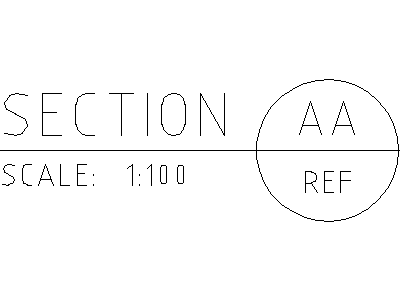

A section title annotation sized for 2.5 mm text – the SECTION heading with underline, scale note (shown as 1:100), and the reference bubble carrying section letters over the sheet reference. Edit the letters and scale per section and the sheet's cross-referencing stays consistent.
The 2.5 mm size suits general arrangement sheets; the matching 2.0 mm version on this site suits dense detail sheets. Both pair with the section cut markers of the same text heights for a complete referencing set. A free DWG format download.
