Description

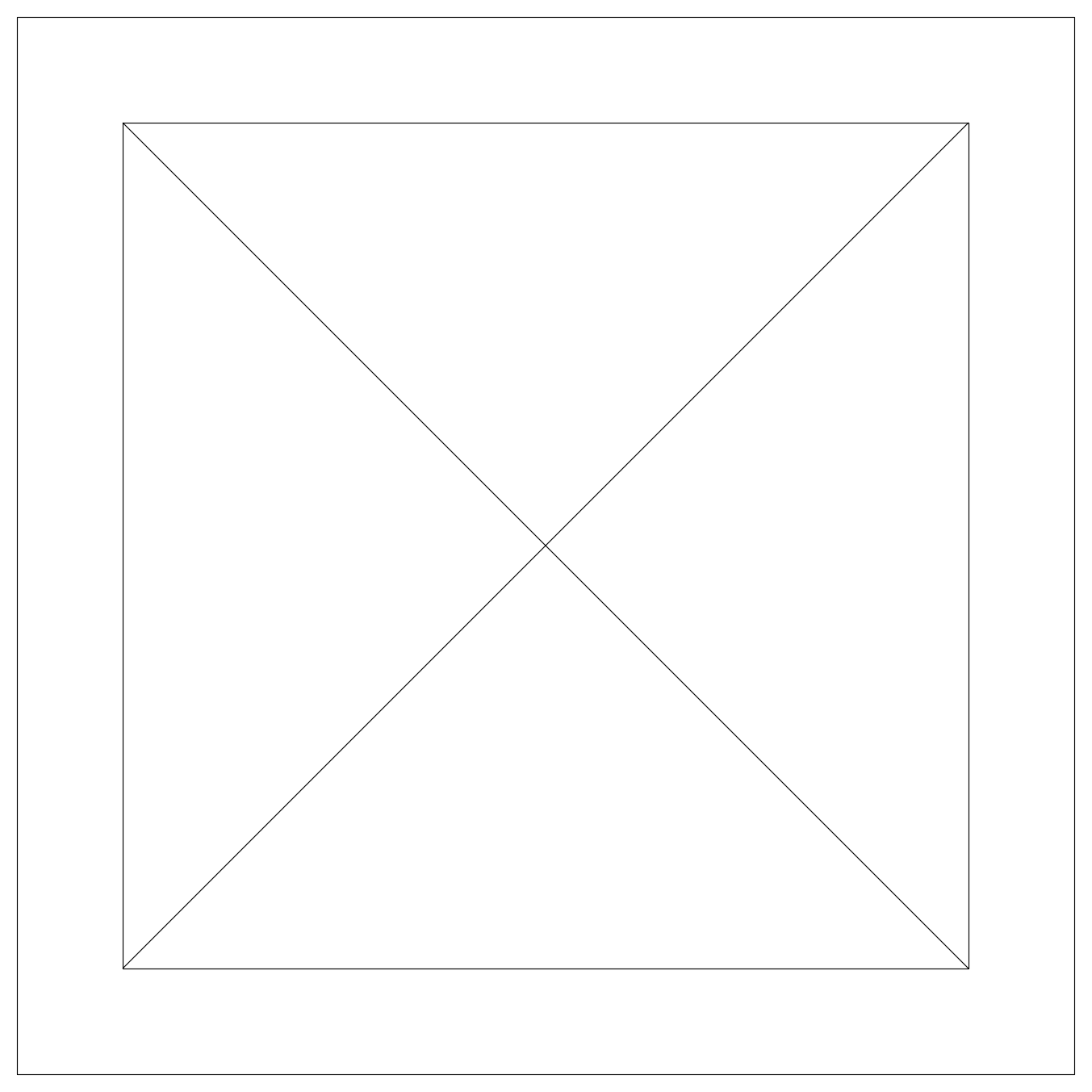

Section symbol for a batten: a cut timber member drawn as a crossed square, set within an outer frame. Drop it into wall, ceiling and roof sections wherever a batten is cut. A free AutoCAD DWG file download.
Batten Section Symbol
- 3 Downloads
- 57.10 KB File Size
- 1 File Count
Block Details
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 57.10 KB |
| Files included | 1 |
| Categories | Architectural Details, Timber |
| License | Free for personal and commercial use – no attribution required |
