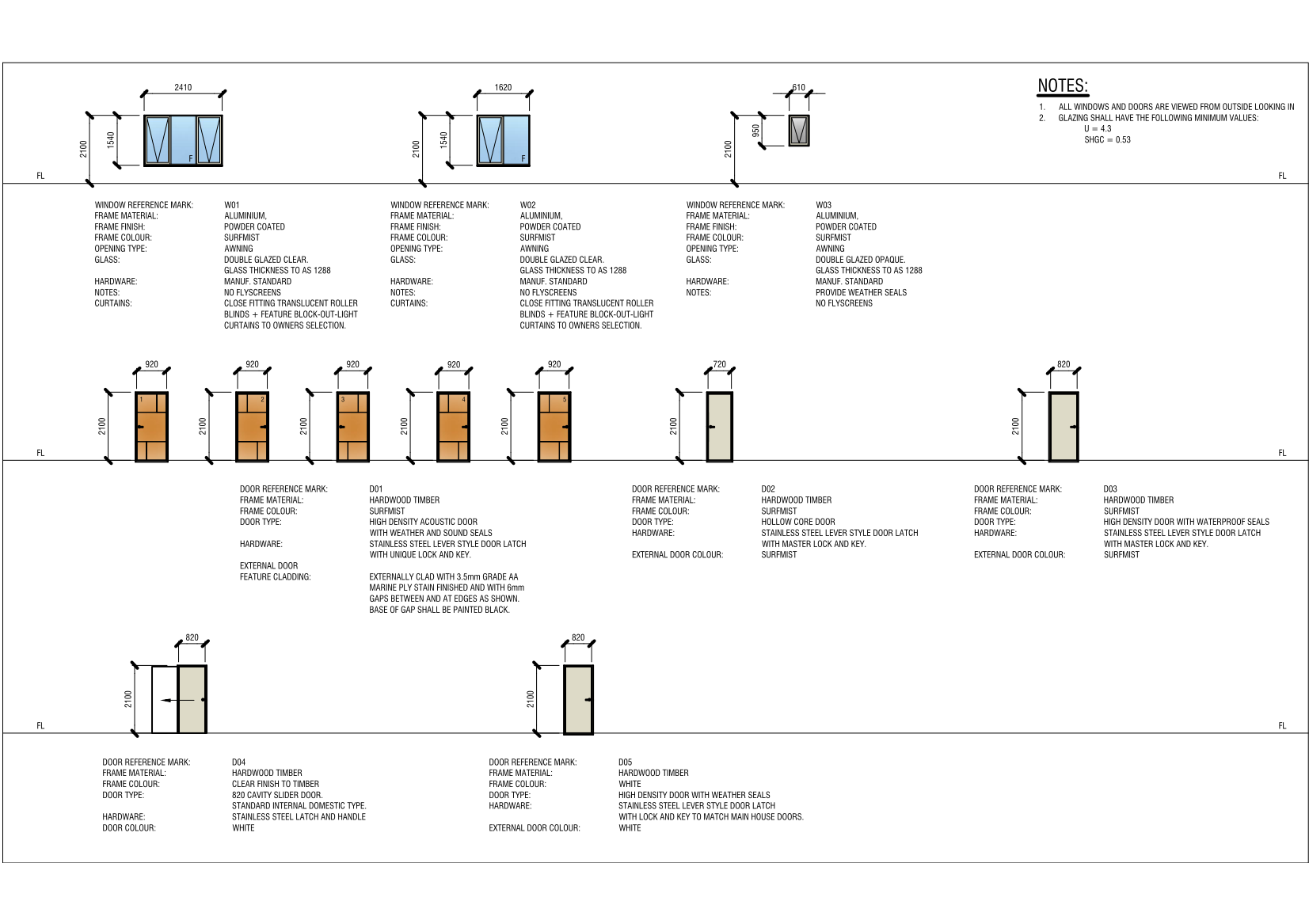

A worked door and window schedule drawn as an elevation sheet – the format used to specify every opening in a house or fit-out on a single coordinated drawing. Each window (W01, W02, W03) and door (D01 to D05) is shown as a dimensioned front elevation over a block of specification notes: reference mark, frame material and finish, frame colour, opening type, glazing, hardware and any special requirements such as weather seals, acoustic cladding or flyscreens.
Use it as a ready-made template – edit the reference marks, sizes and finishes to suit your own project rather than building a schedule from scratch, and keep the two-part layout (scaled elevation plus aligned notes) that makes an opening schedule easy to read on site. The sample follows Australian residential documentation conventions, with sizes such as 2410 × 2100 and 920 × 2100 shown as width × height.
Find more sheets like it in the architectural details category, or start your set-out with the door and window blocks. A free AutoCAD DWG download for all DWG-compatible software.
