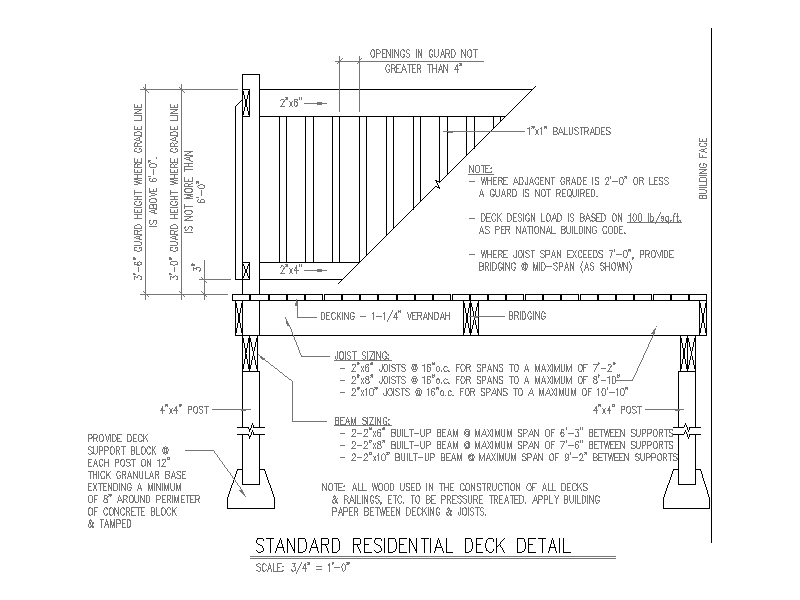

Section detail through a standard residential timber deck, showing the guard with balustrades, decking on joists with mid span bridging, built up beams and posts on deck support blocks. Includes joist and beam sizing tables against maximum span and guard height requirements. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 46.54 KB |
| Files included | 1 |
| Categories | Architectural Details, Structural Details, Timber |
| License | Free for personal and commercial use – no attribution required |
