Description

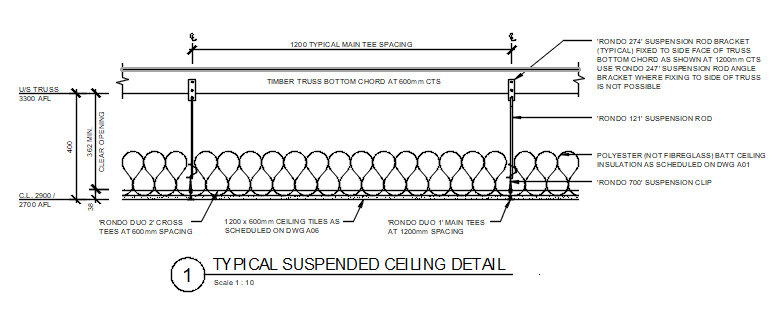

A fully annotated section through a suspended ceiling system, drawn at 1:10 and dimensioned for direct reuse in construction documentation. The detail shows Rondo suspension rods and rod brackets fixed to timber truss bottom chords at 1200 mm centres, main tees at 1200 mm spacing with two-way cross tees at 600 mm, suspension clips, 1200 × 600 ceiling tiles and polyester batt insulation laid over the grid.
Annotations reference the standard Rondo components (274 bracket, 121 rod, 700 clip, Duo tees) and include set-down dimensions from the underside of truss to ceiling line. Swap the product references for your specified system and the detail is ready to issue. A free DWG download for AutoCAD and compatible software.
