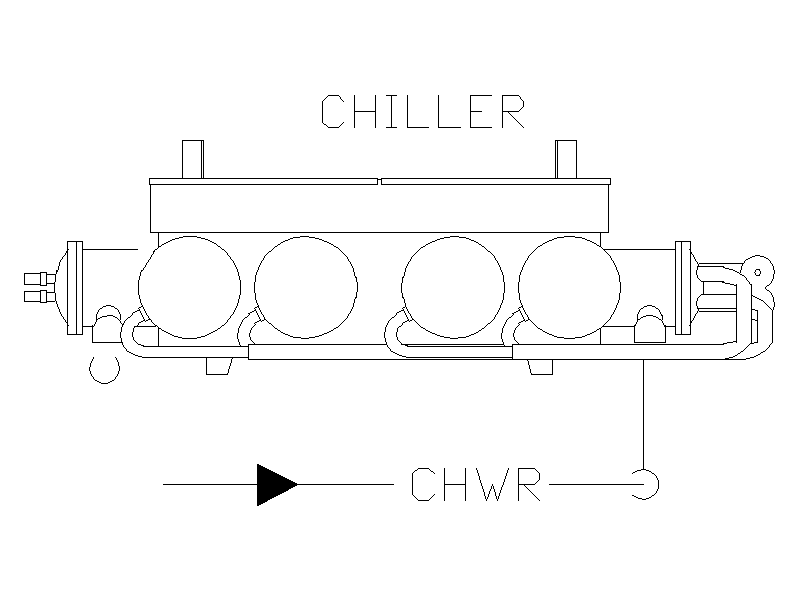

An elevation block of a packaged water chiller, showing the compressor shells, base frame and chilled water return (CHWR) connection. A handy equipment block for mechanical services plant room layouts and HVAC drawings. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 34.05 KB |
| Files included | 1 |
| Categories | Annotations, Mechanical and HVAC Symbols |
| License | Free for personal and commercial use – no attribution required |
